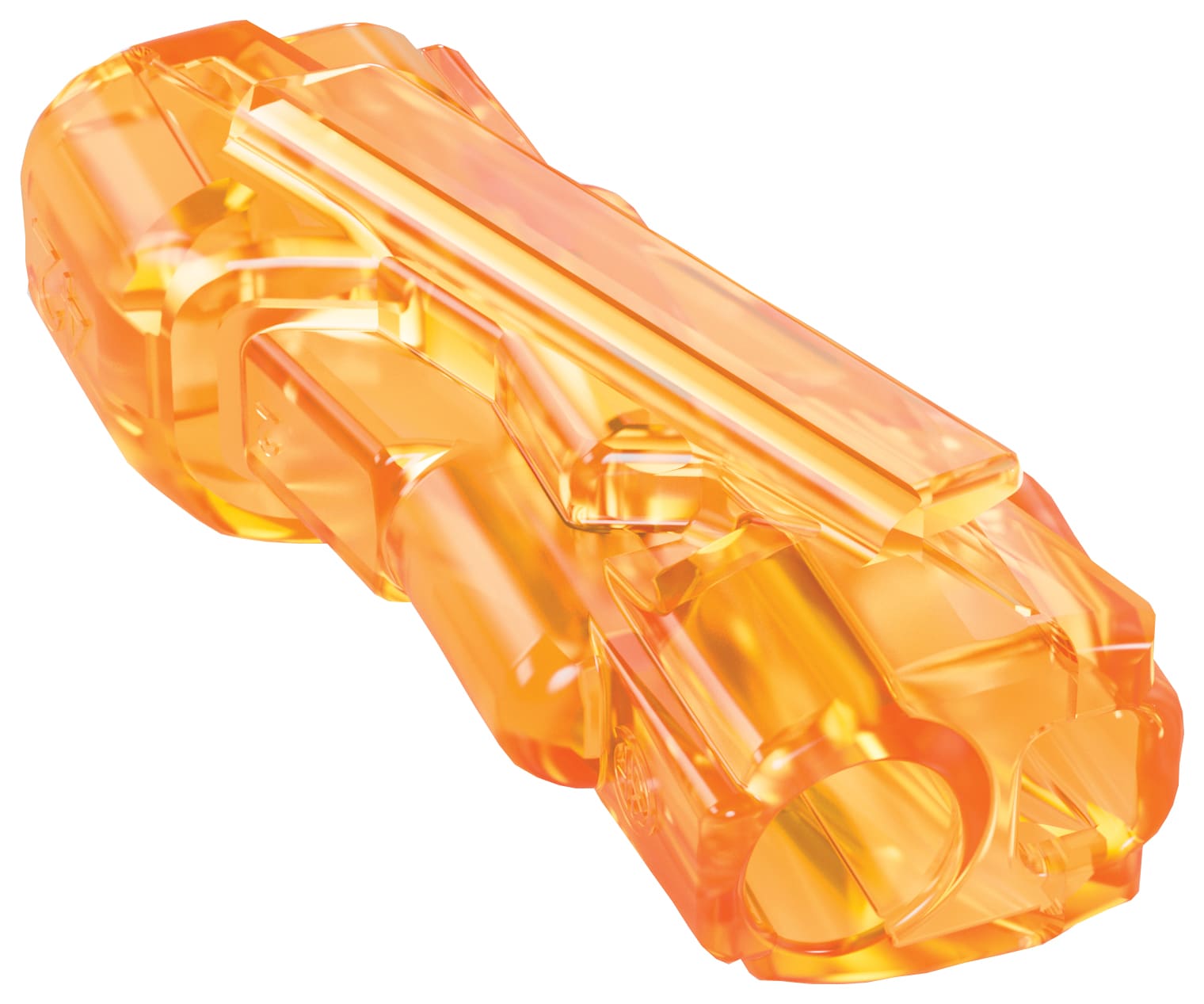

IDEAL Industries 30-1042 SpliceLine In-Line Wire Connector - Pack of 100
Product code: 296170
New
£12
Currently in Stock
Delivery
Next day available
Standard delivery - from FREE
The IDEAL Industries 30-1042 SpliceLine In-Line Wire Connectors are 32A rated and is 3 x faster to install than traditional crimped butt splices. Electricians are often confronted with an existing wire that has been cut too short by the previous contractor to safely install a socket, light switch or lighting fixture. In these situations, it is often very difficult if not impossible to use a crimp tool due to space restrictions. With SpliceLine™ however, the short wire is simply pushed into one end of the connector with the extra length of wire being pushed into the other open end. It now takes less than 10 seconds to join two wires together.
Read more
Read less
Saved to Project List
IDEAL Industries 30-1042 SpliceLine In-Line Wire Connector - Pack of 100
added to "My Project List".
You are not logged in to save your list permanently. Until you log in, your list will be saved temporarily and can only be accessed from the device you are using now.
Standard delivery - from FREE
Product details
- Range: Ideal industries connectors
- Type: Wire connectors
- Height: 76 mm
- Length: 102 mm
- Width: 89 mm
- Maximum Rating: 32 A
- Colour: Orange
- Years Guaranteed: 1
- Pack Quantity: 100
- Manufacturer Model No: 30-1042
- Brand Name: Ideal
Features & benefits
- For use in all applications up to 32A including lighting, access control, radial and final ring circuits
- Suitable for solid and stranded wire
- Suitable for 0.5-4mm² solid wires and 1.0-2.5mm² for stranded
- Reuseable
- Quick and easy Installation, no tools required
- Continuity check port - for testing
