Complete any central heating system with our large range of radiators. The Homeline range from Stelrad Radiator Group offers panel radiators in a large variety of sizes and types from a brand that's trusted by the trade.
Single panel Type 11 radiators have one panel and one convector fin. Double panel radiators come in two types: Type 21 radiators have a double panel and one convector fin, while Type 22 radiators have a double panel and two convector fins. When deciding which radiator is the right one for you, check the size and BTU for each product.
Type 11 Single Radiators
- Single panel and single convector fin
- Best for small or narrow rooms, as heat output is less than Type 21 and 22 radiators
- Slimline 57mm thickness
- Available in heights 500, 600 & 700mm
- Available in widths 500, 600 & 700mm
Type 21 Double Plus Radiators
- Double Panel with single convector fin
- Best for narrow spaces where higher heat output is required
- 40% higher output on average compared to single panel radiators
- 67mm thickness
- Available in heights 500, 600 & 700mm
- Available in widths 400-1600mm
Type 22 Double Premium Radiators
- Double panel with double convector fin
- Best for large rooms where higher heat outputs are required
- 25% higher output on average compared to double plus radiators
- 80% higher output on average compared to single panel radiators
- 100mm thickness
- Available in heights 500, 600 & 700mm
- Available in widths 400-1600mm
How many radiators do I need?

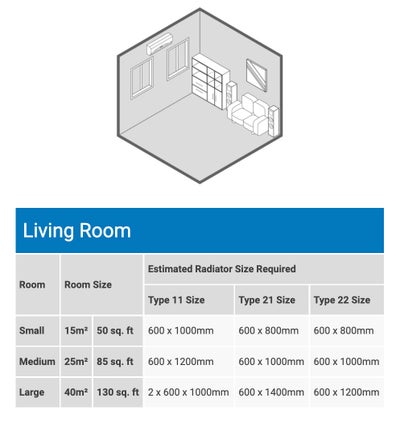

| Living Room | |||||
|---|---|---|---|---|---|
| Room | Room Size | Estimated Radiator Size Required | |||
| Type 11 Size | Type 21 Size | Type 22 Size | |||
| Small | 15m² | 50 sq. ft | 600 x 1000mm | 600 x 800mm | 600 x 800mm |
| Medium | 25m² | 85 sq. ft | 600 x 1200mm | 600 x 1000mm | 600 x 1000mm |
| Large | 40m² | 130 sq. ft | 2 x 600 x 1000mm | 600 x 1400mm | 600 x 1200mm |

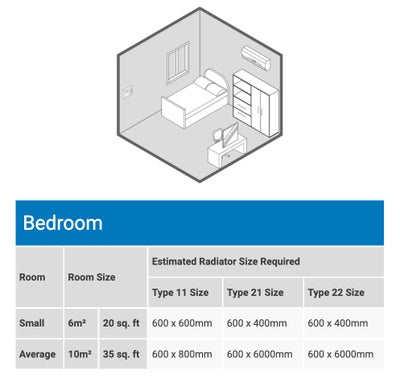

| Bedroom | |||||
|---|---|---|---|---|---|
| Room | Room Size | Estimated Radiator Size Required | |||
| Type 11 Size | Type 21 Size | Type 22 Size | |||
| Small | 6m² | 20 sq. ft | 600 x 600mm | 600 x 400mm | 600 x 400mm |
| Average | 10m² | 35 sq. ft | 600 x 800mm | 600 x 6000mm | 600 x 6000mm |

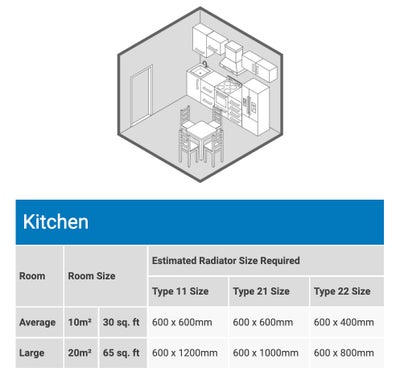

| Kitchen | |||||
|---|---|---|---|---|---|
| Room | Room Size | Estimated Radiator Size Required | |||
| Type 11 Size | Type 21 Size | Type 22 Size | |||
| Average | 10m² | 30 sq. ft | 600 x 600mm | 600 x 600mm | 600 x 400mm |
| Large | 20m² | 65 sq. ft | 600 x 1200mm | 600 x 1000mm | 600 x 800mm |
