Planning & preparation

  • We are going to show you how to construct an outdoor bar from timber and decking boards. This begins with making the timber frames, cladding the panels and assembling the structure, finished with bar tops, a shelf and completing fascia.
  • The materials for this project will cost under £400 and will take a DIYer with moderate skill, approximately 8 hours to build. We recommend having another pair of hands around to help with lifting the heavy cladded panels.
  • Although the weather can be temperamental it’s a good idea to plan ahead as working with wet treated wood can cause major shrinkage, warping and cracks later on.
  • Make sure your timber is dry to get the best results and if the weather takes a turn for the worst, store or cover the wood allowing it to fully dry out before you continue your build.
  • We recommend the bar is built on a solid surface to support the structure and protect it against the elements. These include concrete slabs, patio stone, decking and concrete, wood or plastic shed bases.
  • We recommend putting your timber into piles and setting up your cutting station as close to your chosen assembly area as possible.
  • The assembled structure will measure 1.76 x 1.18 x 2.4m at the tallest point of the pent roof, so it’s important to choose the location of your build carefully before you begin as the constructed bar will be large and heavy.
  • Select an area that has a level surface with good ground conditions, ideally away from overhanging trees.
  • Choose a space that will allow at least 2ft of surrounding space around your bar. This will allow the timber to breathe and ensure you’re able to access the outside panels for future treatments and any repairs.
  • When selecting the perfect space, consider the aspect of your garden and whether you want your bar to sit in full sun or shade.

Do it right

  • Our step by step instructions and cutting list have been designed as a guideline to build a traditional pent roof bar with dimensions of 1.76 x 1.18 x 2.4m.
  • If you’re feeling adventurous or have the perfect area for your bar that’s an unusual space, you can change the size, shape and design with endless creative options.
  • The timber we suggest using for this project is pressure treated for enhanced performance against rot and decay, however, we recommend using a clear wood preserver on all cut ends of timber to seal and protect the wood for a longer life.
  • Watch our top tip videos for our Wickes DIY skills, tips and advice.

Staying safe

  • For safety, we recommend wearing protective goggles and heavy-duty gloves when using a chop saw or drill.
  • Inspect the cables and blade of the chop saw before it is plugged in to ensure they are in good condition. If any of the elements need to be replaced, make sure this is done before construction begins.
  • Ensure your construction area is well lit and ventilated.
  • The cladded panels from the bar will be heavy once constructed, so we recommend having another person on hand to help with the heavy lifting.
  • Always check the manufactures label for recommendations before applying any stains, paints or treatments.

Aftercare

  • Allow the timber bar to acclimatise to the outdoors for two weeks before treatments are applied, so it can adjust to any moisture and temperature changes.
  • Ensure the timber bar is fully dry before any treatments including paint, oil, varnish and wood stains are applied.
  • We recommend a brush and wash down followed by a coat of wood preservative to the entire bar once a year.

Preparing to build

  • Before you begin the build, select the area of your garden where the bar will be constructed We recommend the bar is built on a solid base of concrete slabs, patio stone or decking.
  • Ensure your workbench and chop saw are close to the area of construction for ease. Once you’re set up, stack your timber close by in separate piles.
Preparing to build

Cutting the timber for the frames

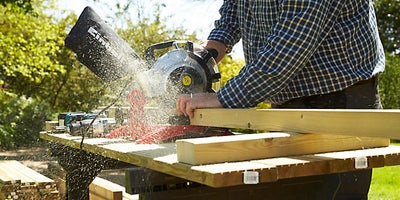

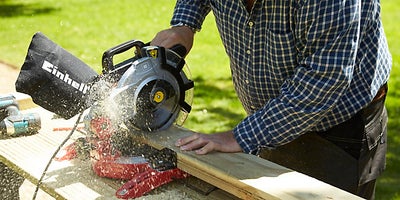

  • Begin by following the cutting list, cutting all of the 44 x 44mm treated timber for each frame to length with the chop saw.
Preparing to build

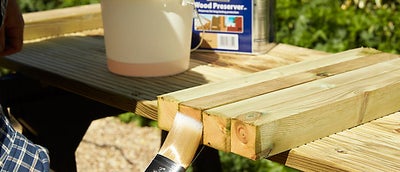

  • Stack the timber as you cut and apply a coat of wood preserver to the cut ends to seal the timber.
Preparing to build
  • Store the cut lengths for each frame in separate piles.

Assembling the timber frames

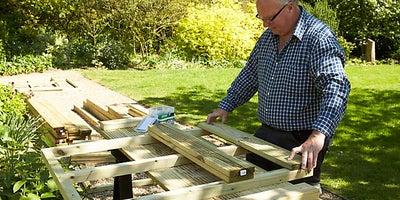

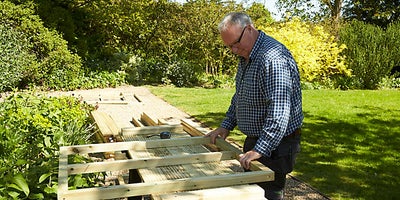

  • Dry lay each frame on the ground ready for assembly.

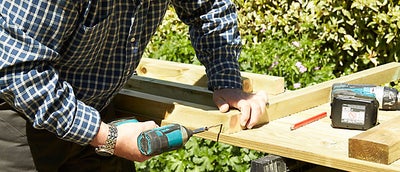

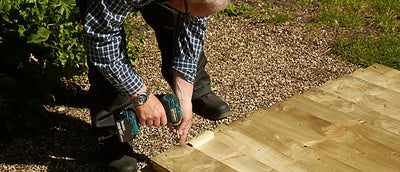

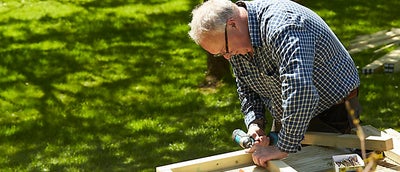

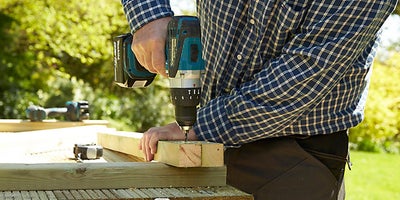

  • To help prevent the timber from splitting, drill pilot holes 22mm from the end of each length ensuring the exit is central, to help prevent the timber from splitting.
Preparing to build
  • Working on a frame at a time, lay the cut lengths flat on the workbench and butt the corners together.
Preparing to build
  • Feeling for a flush join, hold the lengths in place and screw together using the 5 x 80mm wood screws so the head of the screw is sunken into the timber.
  • Repeat this process for all of the frames.
Preparing to build

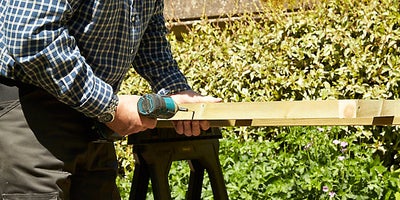

  • Measure and mark the centre of the opposing outer lengths, drill a pilot hole then drive a screw partway through on the outside.
Preparing to build
  • Laying the frame flat on the work bench, position the cross brace making sure it’s centrally aligned, then drive in the screws so the heads are sunken into the timber. You may find with larger frames that it’s easier to stand them on the ground and drill down into the lengths instead.
Preparing to build

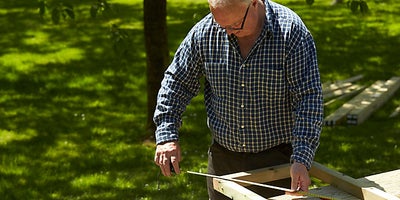

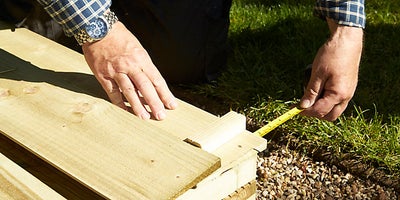

  • To check the frames are square and the corner joints are 90-degrees, measure each frame diagonally from corner to corner. If your frames are square, the measurements will be equal.
Preparing to build
  • Repeat this process for the all of the frames. The right entrance frame does not require a cross brace.

Cutting the feather edge and decking boards for cladding

  • Refer to the cutting list and cut all of the 25 x 120mm x 1.8m deck board to length in one session, treating the cut ends with wood preserver to seal the timber.
Preparing to build
  • Repeat, cutting the 11 x 150mm x 1.8m feather edge fence board to length, also coating the cut ends with wood preserver.
Preparing to build

Cutting the timber posts

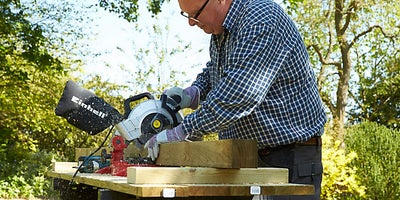

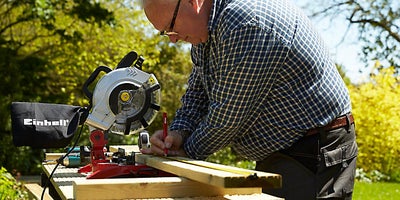

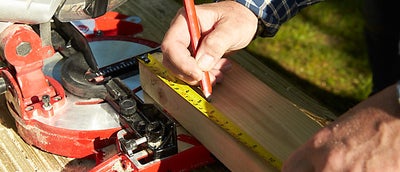

  • Referring to the cutting list, measure and mark the lengths of four of the 75 x 75mm x 2.4m timber fence posts at a 15-degree angle to create a sloping edge for the roof to sit on.
Preparing to build

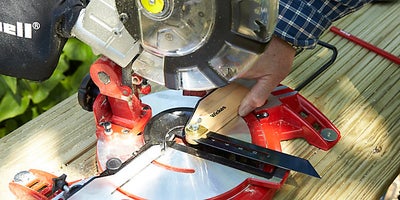

  • Adjust the chop saw and adjustable bevel to 15-degrees then cut the four posts to length at a 15-degree angle, treating the ends with a coat of wood preserver.
Preparing to build
  • The fifth post that is attached to the bar entrance does not require a sloping edge. Measure, mark and cut it to length treating the cut end with wood preserver.
Preparing to build
  • If you find that your chop saw is too small to completely cut through the timber, finish by hands using a universal saw.

Cladding the frames with decking boards

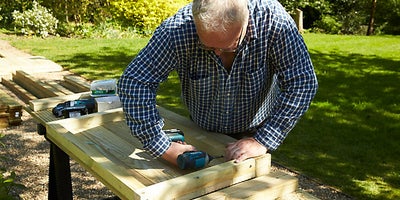

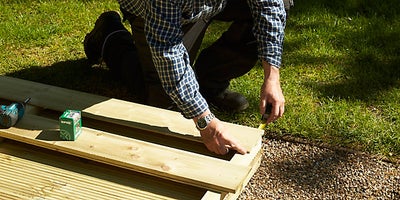

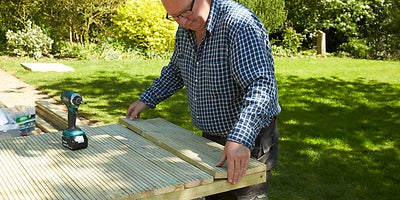

  • Lay a frame flat on the workbench ready for cladding. Starting at one end, place the first deck board onto the frame, ensuring the corner of the 25 x 120mm x 1.8m deck board is flush and in line with the corner of the frame.
Preparing to build

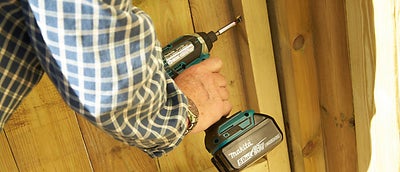

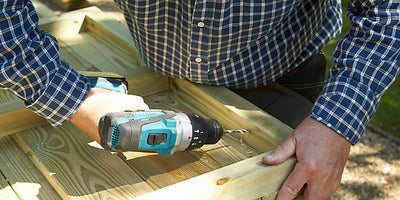

  • Holding the deck board securely, drill two pilot holes at the ends of the length and one in the centre cross brace, then secure with 8 x 64mm deck screws.
  • Continue cladding with lengths of 25 x 120mm x 1.8m deck board until the entire frame is covered.
Preparing to build

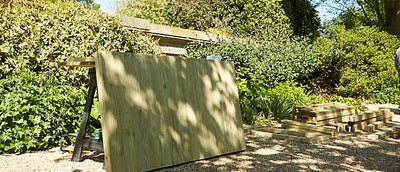

  • Repeat this process for the other frames excluding the roof.
Preparing to build

Preparing the frames for assembly

  • To prepare the cladded frames for final assembly with the 75 x 75mm x 2.4m timber fence posts, drill pilot holes and insert 5 x 80mm wood screws at each inside corner of the frames.
Preparing to build
  • Screw the smallest length of 75 x 75mm x 2.4m timber fence post to the right entrance panel.
Preparing to build

Cladding the roof panel with feather edge boards

  • Starting at one end of the roof frame, lay the first length of 11 x 150mm x 1.8m feather edge fence board with a 20mm overhang. Screw through the thickest part of the board with 4 x 40mm wood screws.
Preparing to build
  • Lay the next length of 11 x 150mm x 1.8m feather edge fence board so the thickest part overlaps the first board. Use a 100mm long spacer to align the overlap then one 4 x 40mm wood screw at either end of the length and one to secure the boards to the centre cross brace, making sure to screw through both boards to the frame.
Preparing to build
  • Repeat until the frame is completely clad.
Preparing to build

Assembling the bar frames, posts and roof panel

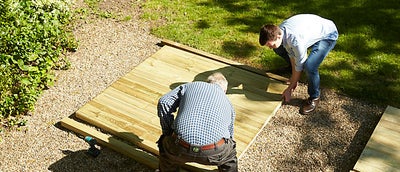

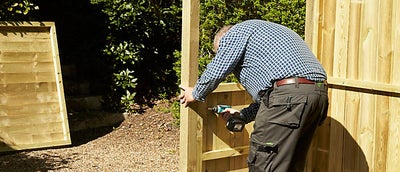

  • To start assembling the bar, move the back panel and posts into position. The cladded panels will be heavy, so have another pair of hands around to help.
Preparing to build

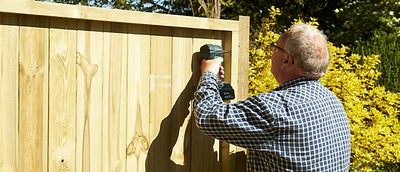

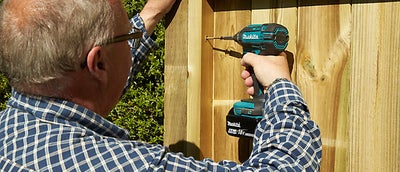

  • With the back panel standing in position, screw the first medium length post onto the back panel using the 5 x 80mm wood screws that are already driven into the frame.
Preparing to build
  • Ensure the cut angle of the post is sloping towards the back of the bar, then screw the longer side panel to the back panel post.
Preparing to build
  • Now the frame is temporarily secure, screw the second medium length post to the other side of the back panel, ensuring the cut angle is sloping towards the back.
Preparing to build
  • Repeat this to secure the first longer front post to the front of the side panel.
Preparing to build

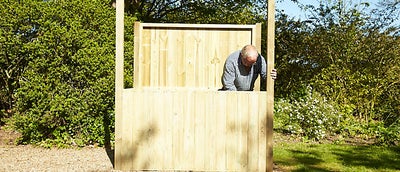

  • Then move the front panel into place, screwing the cladded frame into the longer front post with the wood screws that are already in place, followed by the last longer post to the other end.
Preparing to build
  • Finish by screwing in the right entrance panel (which already has the small post attached) to the long front post.
  • Lastly, with assistance, lift the feather edge cladded roof panel onto the structure so it’s sloping towards the back of the bar and secure to each of the posts using 5 x 80mm wood screws.
Preparing to build

Making the bar brackets

  • Now the structure of the bar is in place, the bar brackets that support the bar tops can be made.

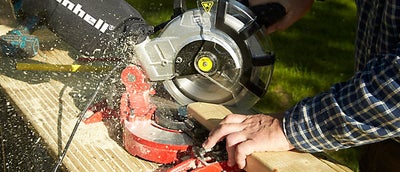

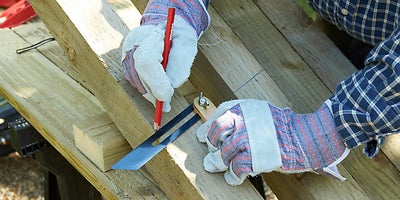

  • Adjust the chop saw to a 45-degree angle. Using the 45 x 95mm x 2.4m treated timber measure 20mm across the width of the timber then cut the corner off at 45-degrees.
Preparing to build
  • Reset the chop saw to 90-degrees, measure 125mm from the top of the length, mark and then cut. Repeat this process to make ten brackets.
Preparing to build

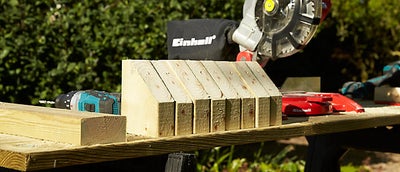

  • Once all ten are cut, drill a pilot hole into the 45-degree face of each bracket, keeping the drill at 90-degrees, then coat all cut ends with wood preserver.
Preparing to build

Fitting the bar brackets

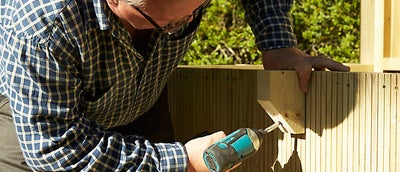

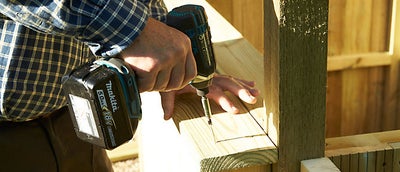

  • Taking seven brackets, screw two to the sides of the back posts and two to the sides of the front posts using 5 x 80mm wood screws.
  • Then screw two brackets onto the front of the front posts and one in the centre of the front cladded panel, so the top of the bracket is flush and in line with the top of the panel.
Preparing to build

Measuring and cutting the bar worktops

  • To make the bar tops, you will need to measure the structure of your bar.
  • To make the front worktop, measure the width from external post to external post and make a note of the measurements.
  • For the side worktops, measure from the back posts to the front posts adding the width of the front worktop 25 x 120mm x 1.8m deck board and make a note of the measurements.
  • For the three internal worktops, make a note of the measurements from inner post to inner post.
  • Using the 25 x 120mm x 1.8m deck board cut the six lengths to size, then adjust the chop saw to 45-degrees.
Preparing to build
  • At the ends of the lengths for the two outer bar tops, measure and mark the centre point then cut off a 45-degree angle to the outer edge, to create an angled corner.
Preparing to build
  • Finish by treating the cut ends with wood preserver to seal the timber.

Fitting the bar worktops and shelf

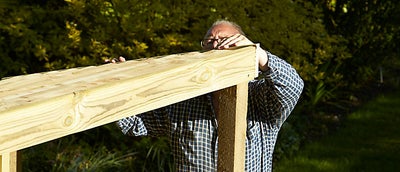

  • With the decking board grooves facing down, screw all six lengths onto the brackets with 8 x 64mm decking screws to create the bar surfaces.
Preparing to build
  • To create a shelf for the back panel of the bar, measure the internal width of the back panel frame then cut a 25 x 120mm x 1.8m deck board to length.
  • Taking the remaining three brackets, screw two at either side of the internal back panel frame, to hold the shelf in place.

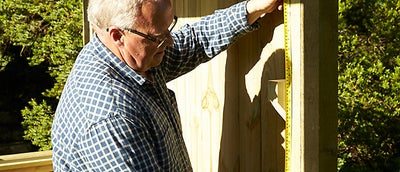

  • You can get the perfect placement for the second bracket by measuring from the top of the inside back panel frame to the top of the first bracket.
Preparing to build
  • Secure the shelf by driving 5 x 80mm wood screws through the length into the brackets, then affix the third and last central bracket under the shelf before securing in the same way.
Preparing to build

Cutting and fitting the roof fascias

  • To create a roof fascia to neaten up the edges of the frame, measure the front of the roof width and cut a length of 25 x 120mm x 1.8m deck board to size.

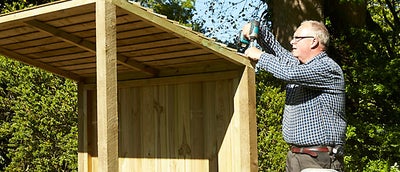

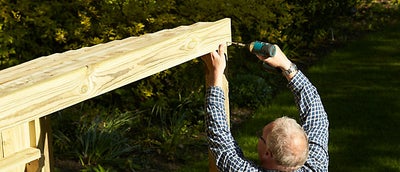

  • Screw this into the front posts at either end using 8 x 64mm decking screws, so the groove of the deck board is on the inside and the top of the length is sitting slightly proud of the frame, to conceal the feather edge boards.
Preparing to build
  • For the side fascias, measure from the front fascia to the back of the roof frame.

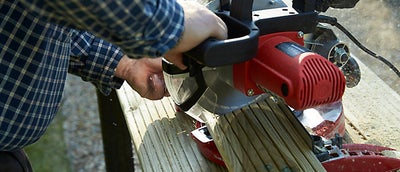

  • Adjust the chop saw to 15-degrees and cut two lengths of 25 x 120mm x 1.8m deck board to size with 15-degree parallel angles at either end.
  • Screw these onto the sides of the roof frame so the grooves and on the inside, using 25 x 120mm x 1.8m deck board. Ensure the length has a neat butt joint to the front fascia and sits slightly proud down the length of the roof frame to conceal the feather edge boards.
Preparing to build

Cutting and fitting the bar fascias

  • Finally, to make bottom fascias for the bar, measure the front and side width of the cladded bar panels.
  • Reset the chop saw to 90-degrees and cut three lengths of 25 x 120mm x 1.8m deck board to length. Ensure the side lengths have neat butt joints to the front of the bar length, then secure to the cut lengths to the four posts using 8 x 64mm decking screws.

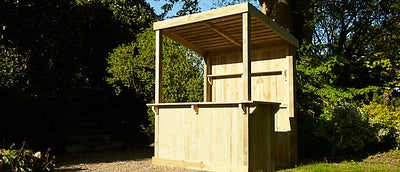

  • And that’s it! Once the bar is constructed, you’re ready to go!
Preparing to build

Get creative with your timber bar

  • Get creative and make the bar into a garden feature with exterior paints and wood treatments.
  • Once the timber has acclimatised and is fully dry, give the bar a good wipe down before you treat the timber, to remove any leaves, moss, dust and dirt.
  • The best time to apply treatments or paint is following a dry spell and when the weather forecast looks clear for the next few days.
  • If you choose to stain, oil or varnish your shed to waterproof and protect the timber against UV light, make sure to choose a quality exterior treatment for wood. Several coats with a timber brush will provide long lasting protection.
  • Choose clear treatments to enhance the natural timber of your bar, or muted garden stains for a traditional finish to help your bar blend into its surroundings.

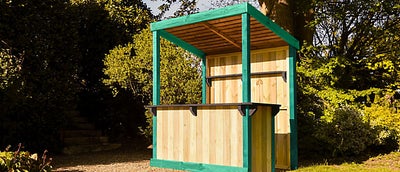

  • If you choose to enhance your timber bar with paint, a good quality wood primer can help your paint go further and make application easy. Once the primer is dry, apply several coats of your chosen colour using a timber brush or exterior paint sprayer, allowing drying time in between each.

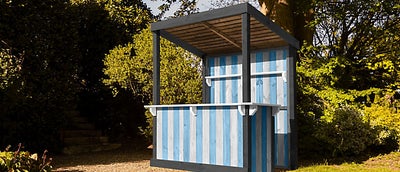

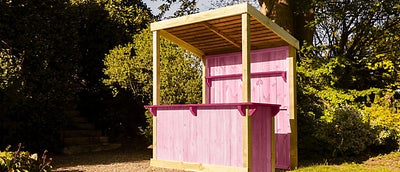

  • Paint the bar with pastel colours for a beach hut look, go bright with bold colours to match your borders or get trendy with vintage style blues, soft pale shades and contrasting window and door frames.
Preparing to build
Preparing to build
Preparing to build

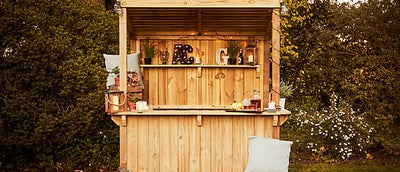

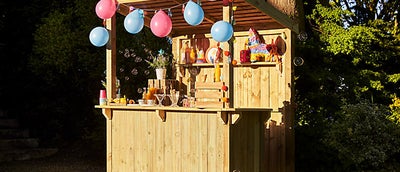

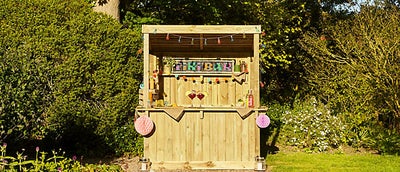

Timber bar inspiration

  • Hang pompoms, balloons and lanterns and fill the bar with fresh fruits, treats, flower garlands, bubbles and hula hoops for a fun tiki themed kid’s party.
  • Add a cool box with plenty of ice, citrus slices, your favourite tipples and mixers and bar snacks, for a great garden party pit stop.
  • Lay out rugs and cushions, hang fairy lights in the trees, put on your party playlist and host a festival themed weekend. Turn your timber bar into a buffet style station with fresh and bright salad bowls, BBQ platters and sauces and top up the cool box and punch bowl ready for a sing along.
  • Add luscious plants and bright hanging baskets, fill up the paddling pool, find the garden games and stock up on ice cream and sprinkles for a summer activities station.
  • Add delicate string lights, fragrant potted herbs, candles, cushions, nibbles and fizz for perfect evening relaxation.
  • Gather up your empty pots, locate the garden tools and compost and use your timber bar as a potting station to fill with summer veggies, flowers and potted shrubs.
