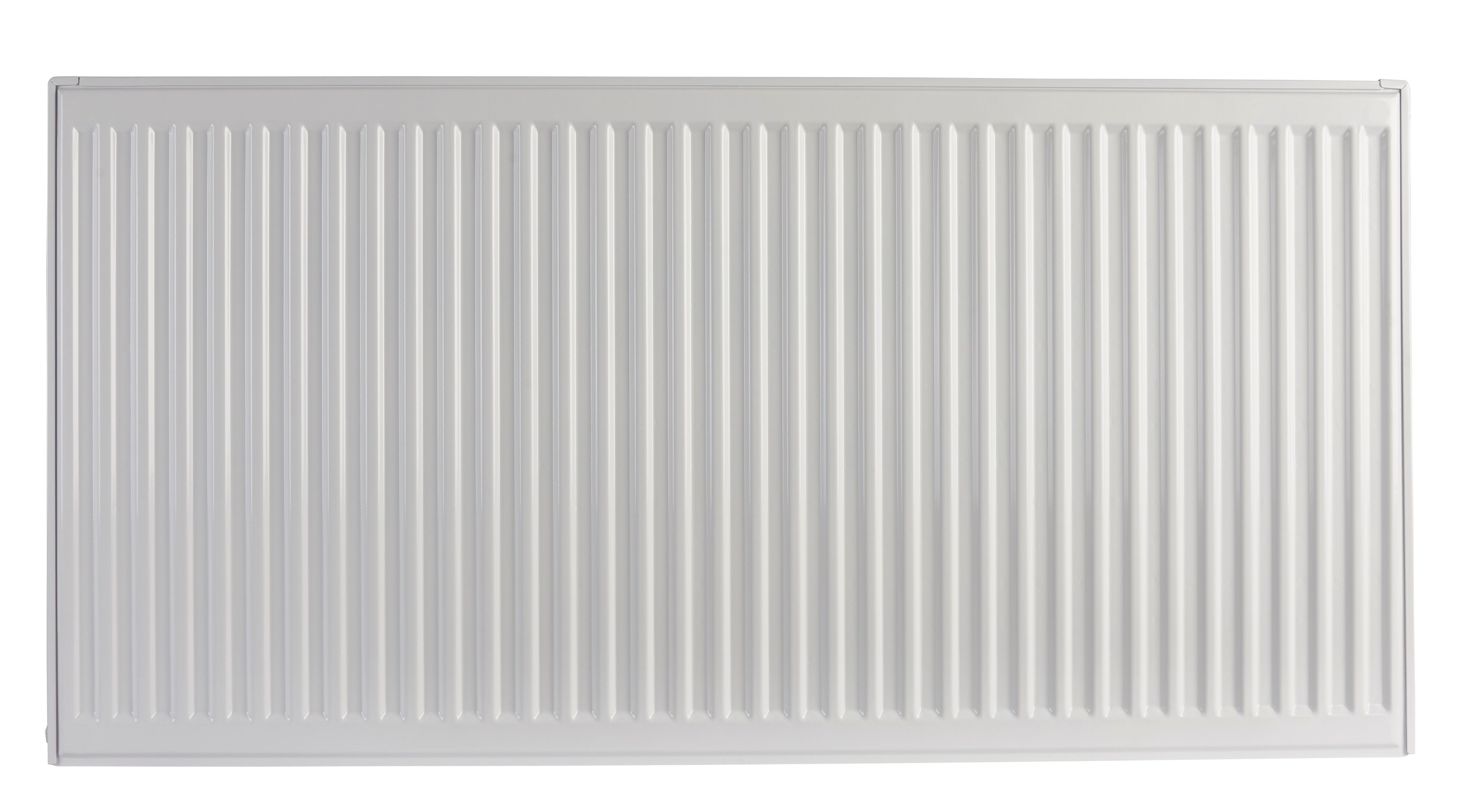

Homeline by Stelrad Type 22 Double Panel Double Convector Radiator - 500 x 900mm
Product code: 176226
2 for £165
Currently in Stock
Delivery
Within 5 days from our supplier
Supplier delivery
Homeline by Stelrad Type 22 Double Panel Double Convector Radiator is equipped with two panels and two convectors, and is suitable for central heating systems. It includes an air vent, a blanking plug, 4 wall plugs, 4 screws and 4 plastic protectors for brackets.
Read more
Read less
Saved to Project List
Homeline by Stelrad Type 22 Double Panel Double Convector Radiator - 500 x 900mm
added to "My Project List".
You are not logged in to save your list permanently. Until you log in, your list will be saved temporarily and can only be accessed from the device you are using now.
Supplier delivery
Product details
- Depth: 100 mm
- Height: 500 mm
- Width: 900 mm
- Projection from Wall Including Radiator: 122-133 mm
- Projection from Wall: 22-33 mm
- Pipe Inlet Size: 15 mm
- Weight: 23.61 kg
- Material: Steel
- Colour: White
- Finish: Powder Coated
- Style: Compact
- Wattage: 1362 W
- Maximum Temperature: 95°C
- BTU/h: 4646
- Mount Type: Wall
- Application: Domestic
- Years Guaranteed: 10
- Type: Type 22 / double panel
- Manufacturer Model No: 422509
- Brand Name: Homeline by Stelrad
Features & benefits
- 4646 BTU (BTU is a measurement of the heat output of the radiator)
- BTU/Watts calculated at Delta T50 based on mean temperature of 70° (75-65-20)
- White RAL9016 powder coated finish
- Pressure tested to withstand 145psi, to perform at a maximum of 101.5psi, at a max temperature of 95°
- BS EN442 certified
- Factory fitted top grill and end panels
- Includes air vent, blanking plug, 4 wall plugs, 4 screws and 4 plastic protectors for brackets
- Manufactured from steel
- Easy to install
- 10 year warranty (T&Cs apply)
