ThermaSkirt BM3 External Corner Set Connection - 90°
Product code: 309879
Supplier delivery
The ThermaSkirt BM3 External Corner Set Connection simplifies the process of negotiating a 90° (±5°) corner for your ThermaSkirt system using a patented push-fit connector. The durable fitting is made from tough thermoplastic and has been tested to over 15 bars of pressure. It features double Teflon® coated O-rings for a reliable, long-term seal. A thin, colour-matched stainless steel cover hides the connection and provides tamper-proof protection against accidental damage and scuffing. The kit includes 3 x Oval corner connectors, 4 x retaining clips, and 1 x cover.
Read more
Read less
Saved to Project List
ThermaSkirt BM3 External Corner Set Connection - 90°
added to "My Project List".
You are not logged in to save your list permanently. Until you log in, your list will be saved temporarily and can only be accessed from the device you are using now.
Supplier delivery
Product details
- Depth: 20 mm
- Height: 115 mm
- Projection from Wall Including Radiator: 20 mm
- Pipe Inlet Size: 15 mm
- Weight: 0.36 kg
- Material: Plastic & stainless steel
- Colour: White
- Maximum Temperature: 75°
- Application: Domestic & Commercial
- Years Guaranteed: 10
- Type: Connection kits
- Manufacturer Model No: ECSBM3-CW
- Brand Name: Discrete Heat
- Range Description: ThermaSkirt
Features & benefits
- Standard connection set for external corners
- Tolerant to ±5° to accommodate imperfect corners
- Double clipped to withstand up to 13 bar pressure
- 0.5mm stainless clip-on cover with colour matched
- For chamfering the ends of the profiles use DTSK - ThermaSkirt Installation & Spare Parts Kit (Search SKU 309876)

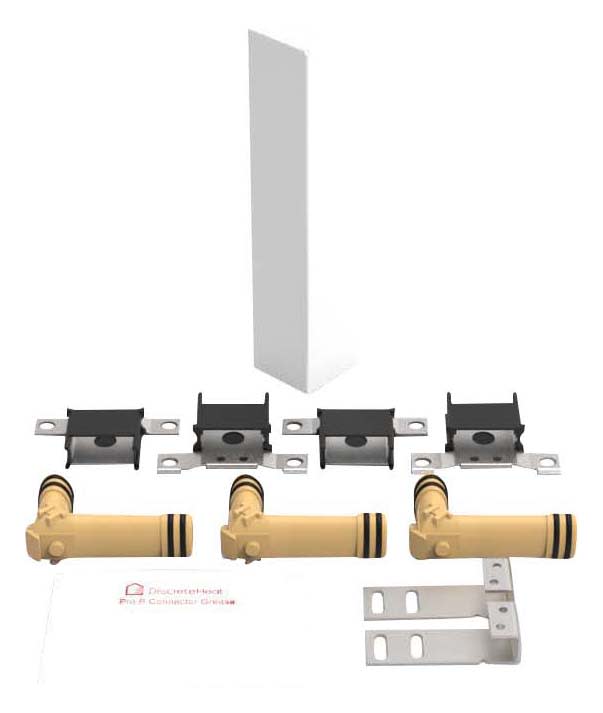

- Includes: 4 connector clips, 3 of 90° elbow connectors (oval-oval), 2 anchor brackets and 1 external 90° cover
- 10 year guarantee (T&Cs apply)
