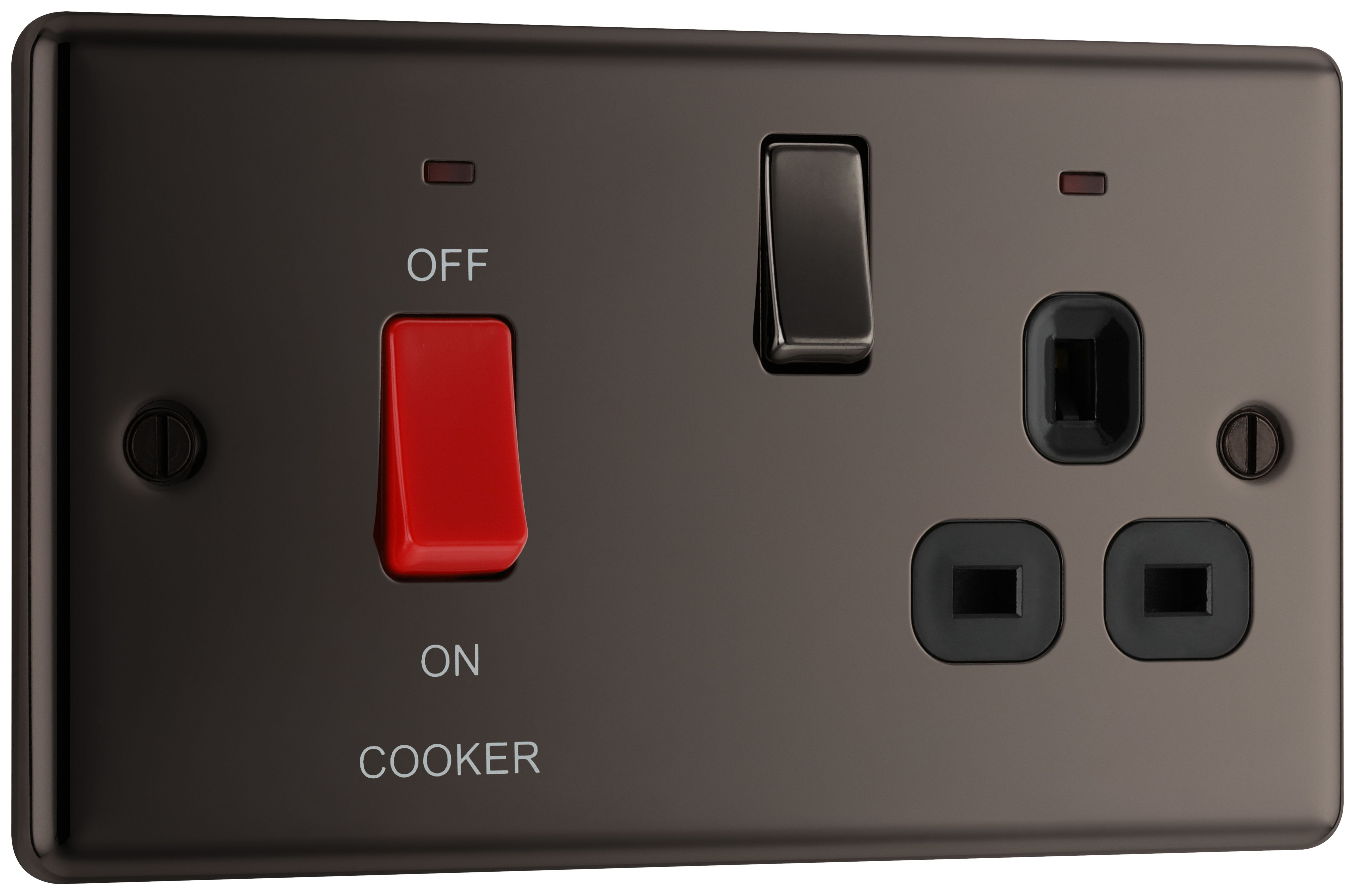

BG 45A Screwed Raised Plate Cooker Control Unit with Switched 13A Power Socket includes Power Indicators - Black Nickel
Product code: 232831
Product added for Click & Collect
Product has not been added for Click & Collect
Click & Collect
Nearest Store
More Stores
Quantity:
1
£17
Stores with both stock and Click & Collect near .
FREE Click & Collect in as little as 15 minutes from over 230 stores
Standard Delivery - From £4
Click & Collect from store in as little as 15 minutes - FREE
The BG 45A Screwed Raised Plate Cooker Control Unit with Switched 13A Power Socket includes Power Indicators offers a comprehensive solution for controlling your cooker while providing additional power sockets for added convenience. Designed with both functionality and style in mind, it's the perfect addition to any modern kitchen. Equipped with power indicators for both the cooker control switch and the 13A socket, providing visual confirmation of their status for added convenience.
Read more
Read less
Saved to Project List
BG 45A Screwed Raised Plate Cooker Control Unit with Switched 13A Power Socket includes Power Indicators - Black Nickel
added to "My Project List".
You are not logged in to save your list permanently. Until you log in, your list will be saved temporarily and can only be accessed from the device you are using now.
Standard Delivery - From £4
Click & Collect from store in as little as 15 minutes - FREE
Product details
- Number of Gangs: 2
- Depth: 33 mm
- Height: 153 mm
- Width: 178 mm
- Colour: Black nickel
- Fastener Type: Screw
- Interior or Exterior Use: Interior
- IP Rating: IP20
- Current Rating: 45 A
- Voltage: 240 V
- Type: Cooker control units
- Pack Quantity: 1
- Years Guaranteed: 25
- Standards Met: BS4177
- Manufacturer Model No: CBN70B-WS
- Brand Name: BG
Features & benefits
- Decorative black nickel round edge, sleek and slim with softly rounded edges
- Ideal for cookers and ovens
- 65 way switching allows for a second switch position in a circuit
- Easy to install, supplied with fixing screws and installation instructions
- Minimum mounting box depth: 47mm
- Angled colour coded terminals with captive screws
- L&N terminal capacity 4 x 4.0mm2, 3 x 6.0mm2 and 1 x 16.0mm2
- E terminal capacity 3 x 4.00mm2, 3 x 6.0mm2 and 1 x 16.0mm2
- Manufactured to BS 4177, BS EN 60669-1
