ThermaSkirt BM2 RH Clockwise Feed & Return Set - 15mm
Product code: 309897
Supplier delivery
The ThermaSkirt BM2 RH Clockwise Feed and Return Set is designed to fit a ThermaSkirt heating system, connecting to 15mm pipes and enabling the system to flow and heat in a clockwise direction from a single point. It is used for systems where the flow runs from left to right. All ThermaSkirt connections are push-fit, meaning no soldering is required. The kit includes Tectite 15mm fittings, Oval to 15mm adapters, retaining clips, a return manifold, and covers. Please note that controls must be ordered and installed separately.
Read more
Read less
Saved to Project List
ThermaSkirt BM2 RH Clockwise Feed & Return Set - 15mm
added to "My Project List".
You are not logged in to save your list permanently. Until you log in, your list will be saved temporarily and can only be accessed from the device you are using now.
Supplier delivery
Product details
- Depth: 20 mm
- Height: 115 mm
- Projection from Wall Including Radiator: 20 mm
- Pipe Inlet Size: 15 mm
- Weight: 0.50 kg
- Material: Plastic & stainless steel
- Colour: White
- Maximum Temperature: 75°
- Application: Domestic & Commercial
- Years Guaranteed: 10
- Type: Connection kits
- Manufacturer Model No: RFS15BM-CW
- Brand Name: Discrete Heat
- Range Description: ThermaSkirt
Features & benefits
- Left to right feed kit, suitable for starting at a doorway
- Suitable for remote control via a 2 port valve or manifold system
- Connects onto standard 15mm pipe - copper or plastic
- Push fit fittings for simple DIY installation
- Tough Powder coat stainless steel covers
- Works with any wall mounted thermostat and suitable valve control
- Compatible with all boiler types including air-source heat pumps

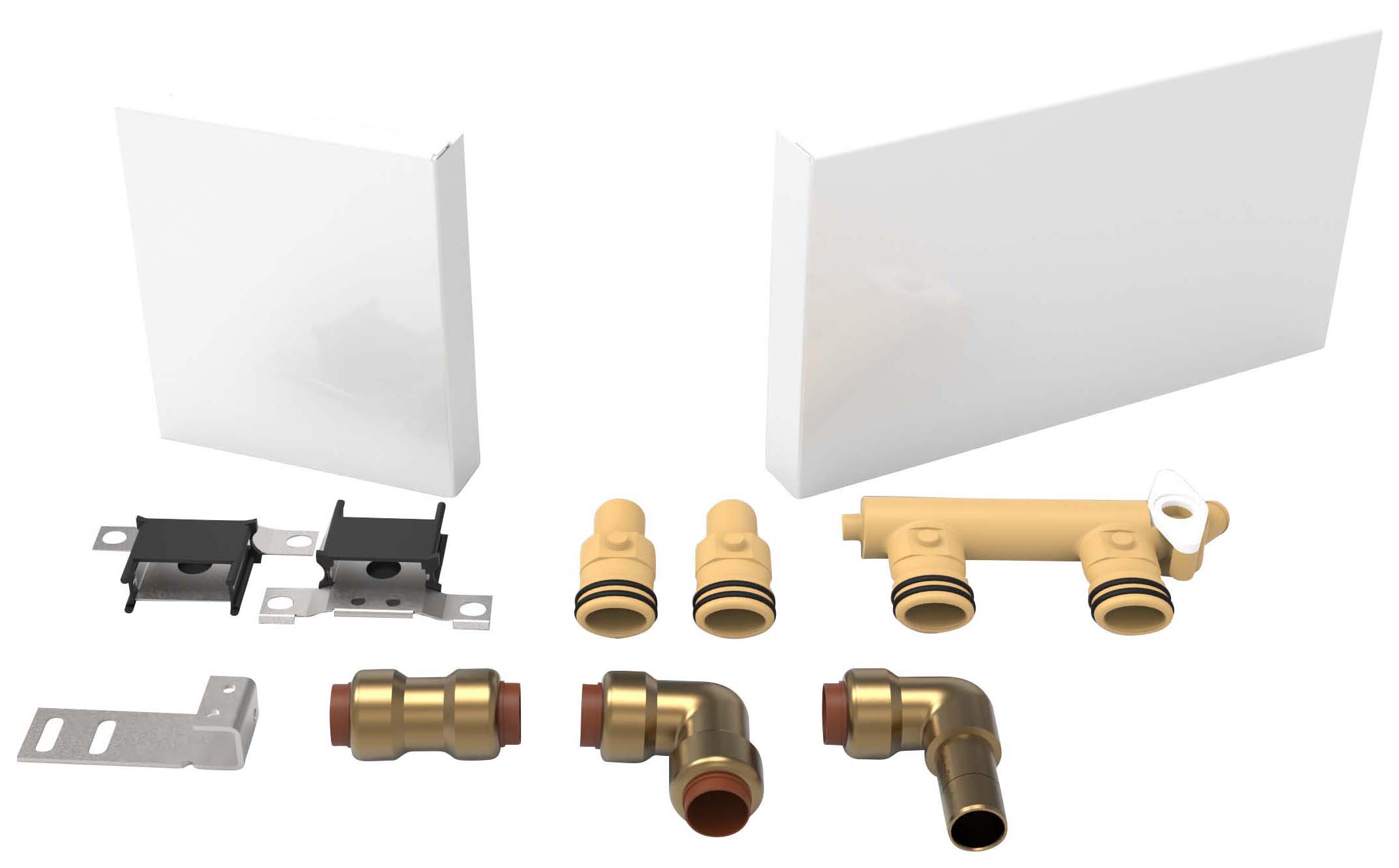

- Includes: 1 Tectite elbow, 1 Tectite straight coupling, 1 Tectite street elbow, 1 anchor brackets, 1 connector clips, 2 oval to 15mm straight connectors, 1 return manifold, 1100mm left hand cover and 1200mm right hand cover
- 10 year guarantee (T&Cs apply)
