ThermaSkirt BM3 RH Clockwise Feed, TRV Feed & Return Set - 15mm
Product code: 309898
Supplier delivery
The ThermaSkirt BM3 RH Clockwise Feed Kit TRV Feed and Return Set is designed to fit a ThermaSkirt heating system, connecting to 15mm pipes and enabling the system to flow and heat in a clockwise direction from a single point. It is used for systems where the flow runs from left to right. All ThermaSkirt connections are push-fit, meaning no soldering is required. An on-board TRV and flow control valve are included, providing manual local temperature control at the turn of a dial. The kit includes Tectite push-fit fittings, oval to 15mm round adapters, a return manifold, and covers.
Read more
Read less
Saved to Project List
ThermaSkirt BM3 RH Clockwise Feed, TRV Feed & Return Set - 15mm
added to "My Project List".
You are not logged in to save your list permanently. Until you log in, your list will be saved temporarily and can only be accessed from the device you are using now.
Supplier delivery
Product details
- Depth: 20 mm
- Height: 170 mm
- Projection from Wall Including Radiator: 20 mm
- Pipe Inlet Size: 15 mm
- Weight: 0.50 kg
- Material: Plastic & stainless steel
- Colour: White
- Maximum Temperature: 75°
- Application: Domestic & Commercial
- Years Guaranteed: 10
- Type: Connection kits
- Manufacturer Model No: RTS15BM3-CW
- Brand Name: Discrete Heat
- Range Description: ThermaSkirt
Features & benefits
- Left to right feed kit, suitable for starting at a doorway
- Simple 'on-board' mechanical Thermostat control
- Connects onto standard 15mm pipe - copper or plastic
- Push fit fittings for simple DIY installation
- Tough Powder coat stainless steel covers
- Includes frost protection and a balancing valve to regulate the flow
- Excludes 15mm pipe
- Compatible with all boiler types including air-source heat pumps

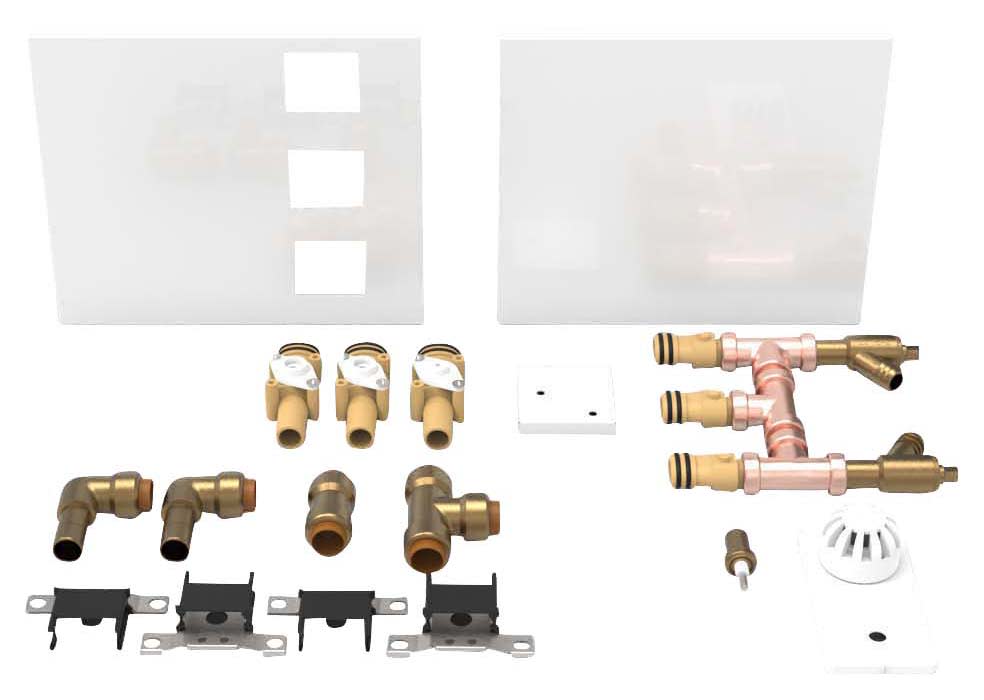

- Includes: 1 Tectite Tee's, 1 Tectite straight coupling, 2 Tectite street elbows, 4 connector clips, 2 lockshield valve, 1 TRV valve, 1 valve facia kit, 1 return manifold, 1 200mm left hand cover with a window and 1200mm right hand cover
- 10 year guarantee (T&Cs apply)
