Panelling up the stairs: tips, tricks and ideas

Installing wood panelling for stairs yourself is much easier than it looks. We know that when you are dealing with diagonal angles, it can be a bit trickier than a standard straight wall. Thankfully, we are here to walk you through the process from start to finish.

Our step-by-step guide will help you follow along with every single cut and measurement. Whether you want modern stair panelling to refresh your hallway, or you are looking for half-wall stair panelling ideas to add character, we have you covered. There is nothing like the feeling of a job well done. Let us help you get there.

Find your diagonal cutting angle by measuring the stair line with an angle finder and halving the result.
Space your panels evenly by subtracting the total gap width from your wall length, then dividing by the number of panels.
Keep horizontal measurements consistent across your wall by cutting a wood offcut to size and using it as a spacer.

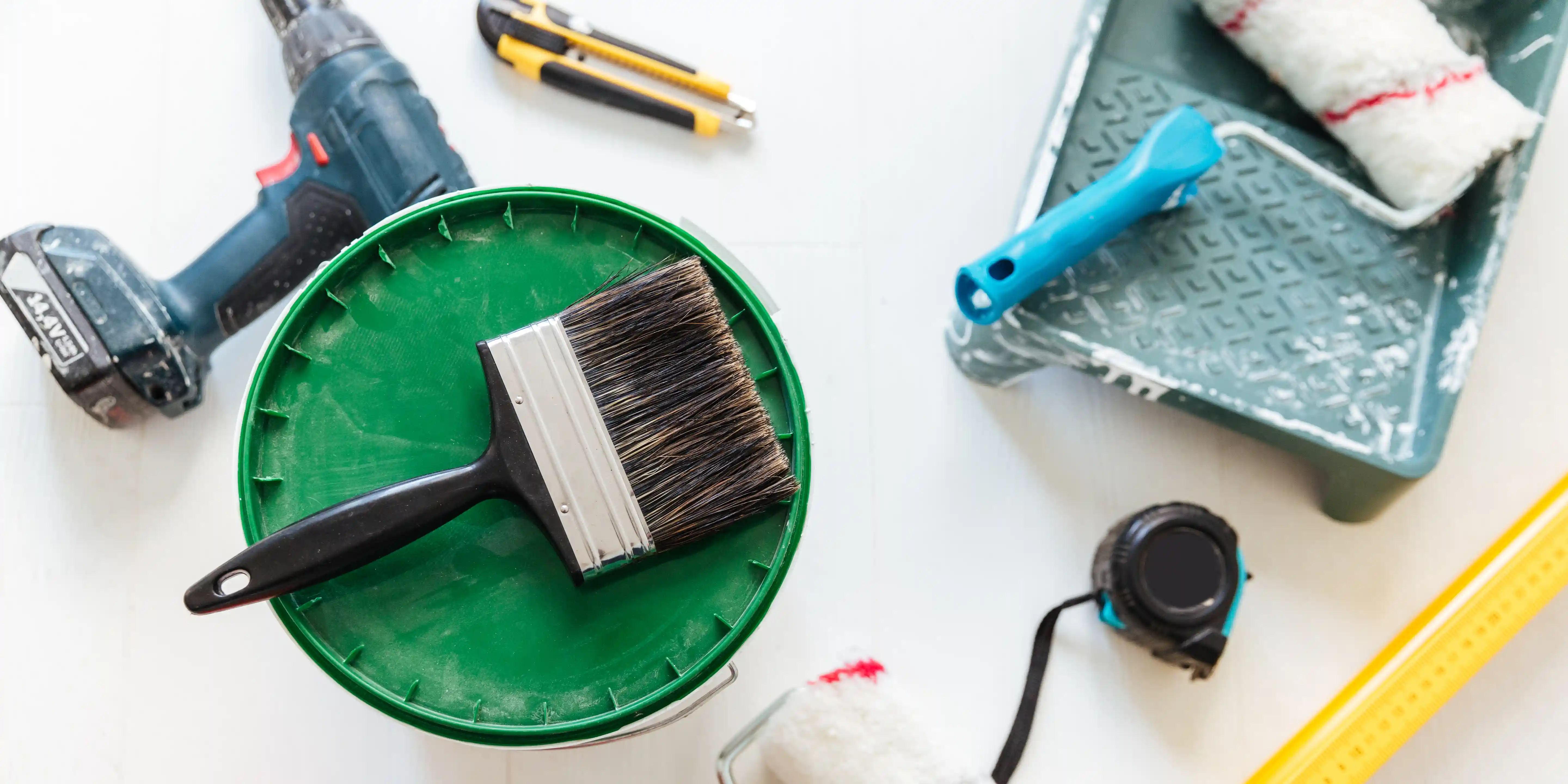

Tools required for DIY stair wall panelling

To get your stair panelling project started right, you will need to gather a few essentials. The tools required for DIY stair wall panelling include your chosen moulding, a dado rail, a reliable angle finder, and a tape measure. You will also need wood glue and nails to secure your panels. For achieving the perfect finish, we recommend keeping a chalk line, a damp cloth, and some decorating caulk close to hand.

Preparing walls for stair panelling installation

Before you start your stair panelling installation, it’s important to get the walls ready. Begin by removing any wallpaper, peeling paint, or loose finishes so your wood glue can bond directly to the plaster or plasterboard.

Next, check for any cracks, holes, or uneven areas and fill them with plaster or filler.

Once the repairs are dry, lightly sand the wall to create a smooth, even surface. This helps your stair wall panels sit flush and ensures a stronger, longer-lasting fix.

Finally, wipe down the wall to remove dust and debris.

How to install panelling on a staircase wall

Start with your dado rail panelling stairs. The dado rail is the thicker piece of wood at the top of a panelled section. You need to measure and mark the position of this first, as it will follow the direction of your stairs. Measure an equal height from the top and bottom steps. The straight line between these two points will be where you place your dado rail moulding.

How to measure and cut panels for stair angles

To cut the moulding, you will need to use an angle finder to get the perfect cut. Find the angle of the diagonal line, and halve it to get your cutting angle.

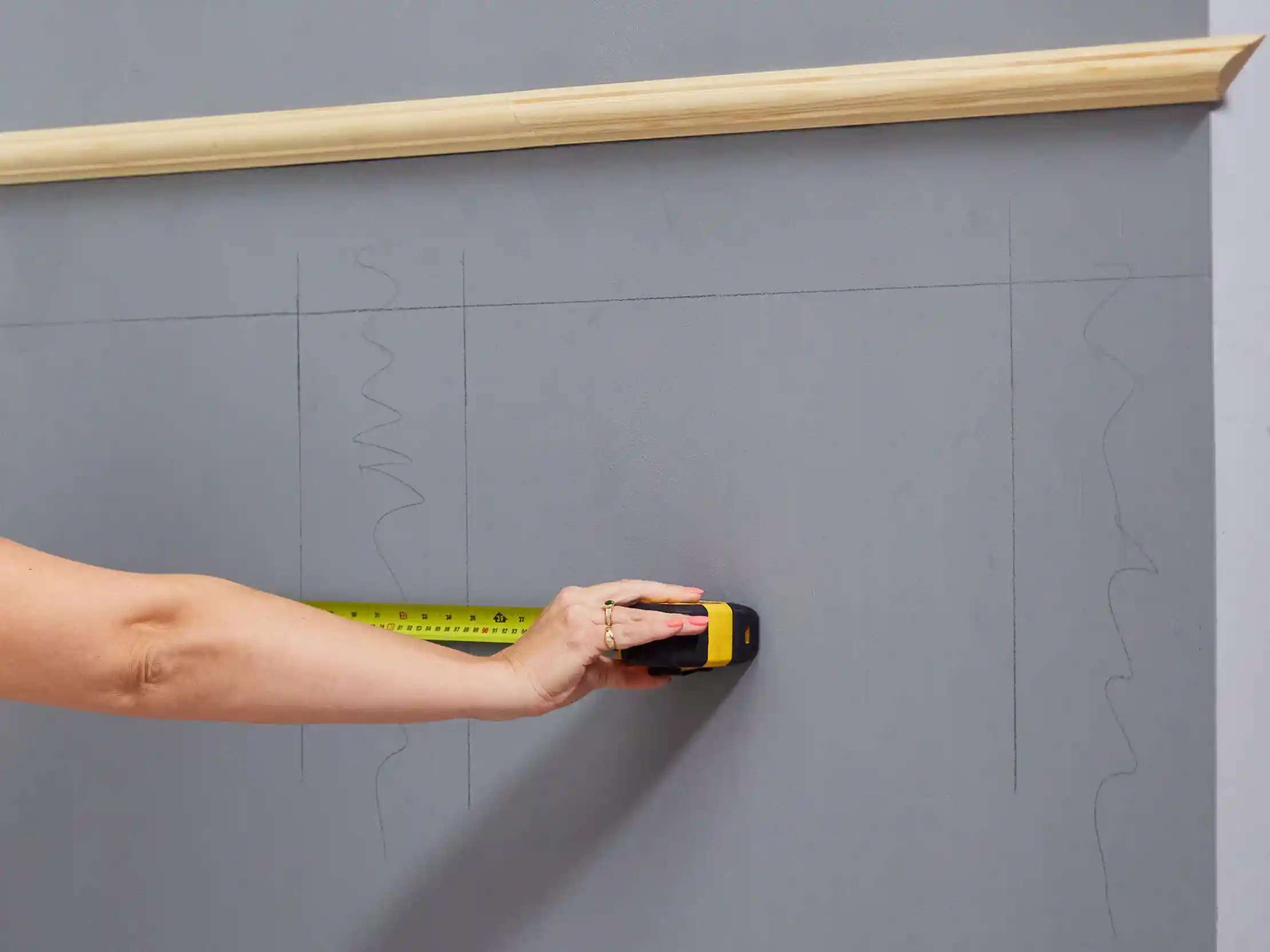

Once you have attached the dado rail, work out where the box panels will go. Make sure to measure an equal distance below the rail all the way along it to mark where the top of your panels will be.

Take a horizontal measurement between the marks you made earlier above the top and bottom steps. You then want to take 10mm away from this measurement for every panel you will be installing. So, if there will be 4 panels, take away 4x10mm. Then divide the result by the number of panels and mark out your panel positions according to your measurements. For example:

Measurement from bottom to top steps = 2500mm

4 Panels: 10mm x 4 = 40mm 2500mm – 40mm = 2460mm 2460mm / 4 panels = 615mm per panel

Cut your moulding pieces to fit your markings, remembering to use an angle finder to get those perfect cut angles. Don’t forget to include the 10mm gaps between the panels when working out the spacing.

Fix your moulding onto the wall with wood glue and secure with nails. Now all you need to do is mark out the rest of the panelling in hallways and stairs on any straight walls above and below the staircase.

Best practices for finishing stair panelling

Drawing a straight line between two points that are metres apart can be a challenge. We recommend using a chalk line. Ask someone to hold it at one end while you hold the other, then quickly pull the taut string towards you so it pings a line of chalk onto the wall. You can then remove the mark with a damp cloth before painting.

If your walls are uneven, panelling on stairs can leave gaps between the moulding and the wall. If this happens, use caulk to fill in any gaps for a smooth finish.

When marking the space between the dado rail and the top of the stair wall panels, use a wood offcut. Simply cut the offcut to size, line it up against the dado rail, and mark underneath it. You will then have a consistent measurement for the whole design.

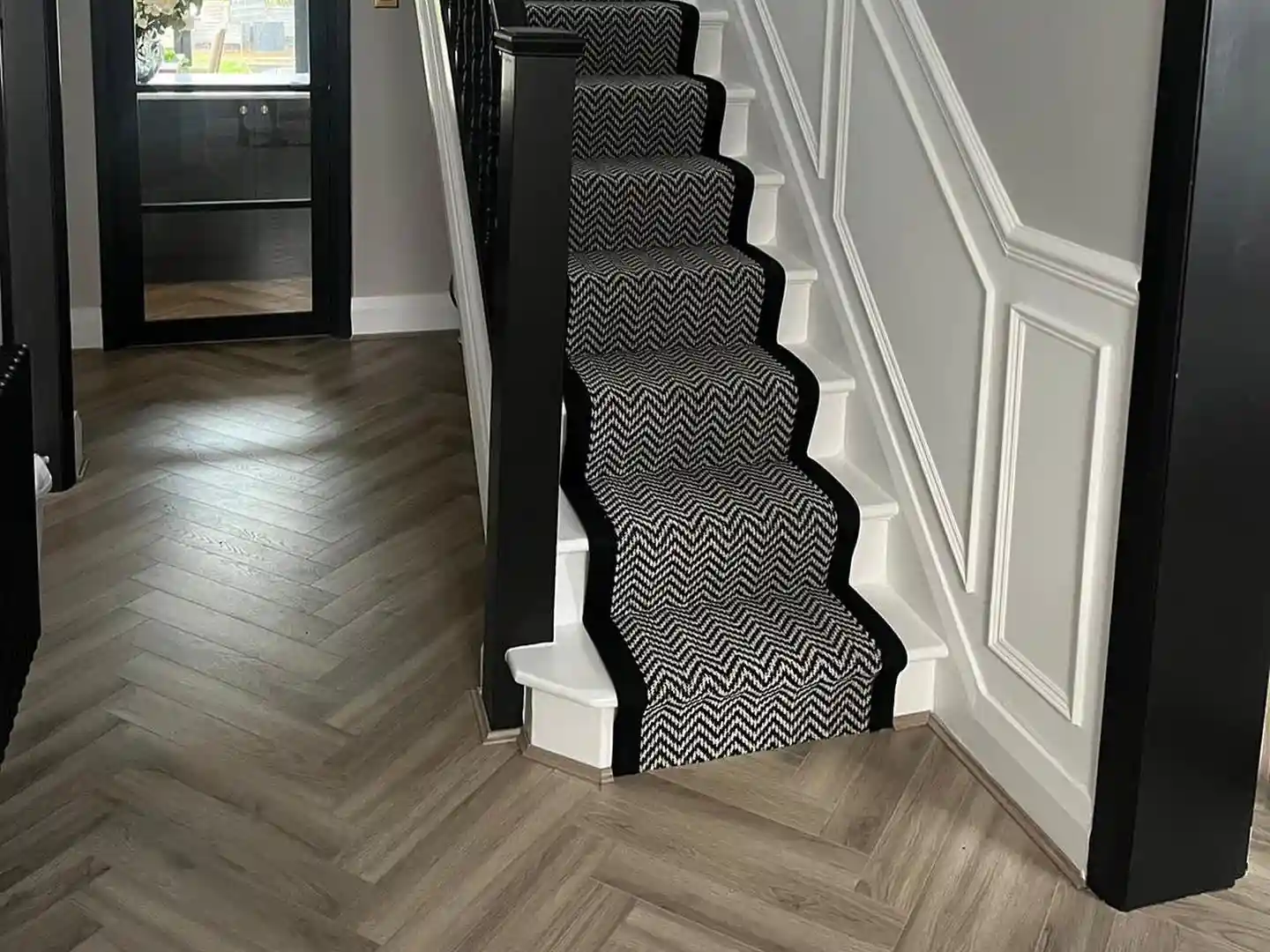

Staircase wall panelling design inspiration

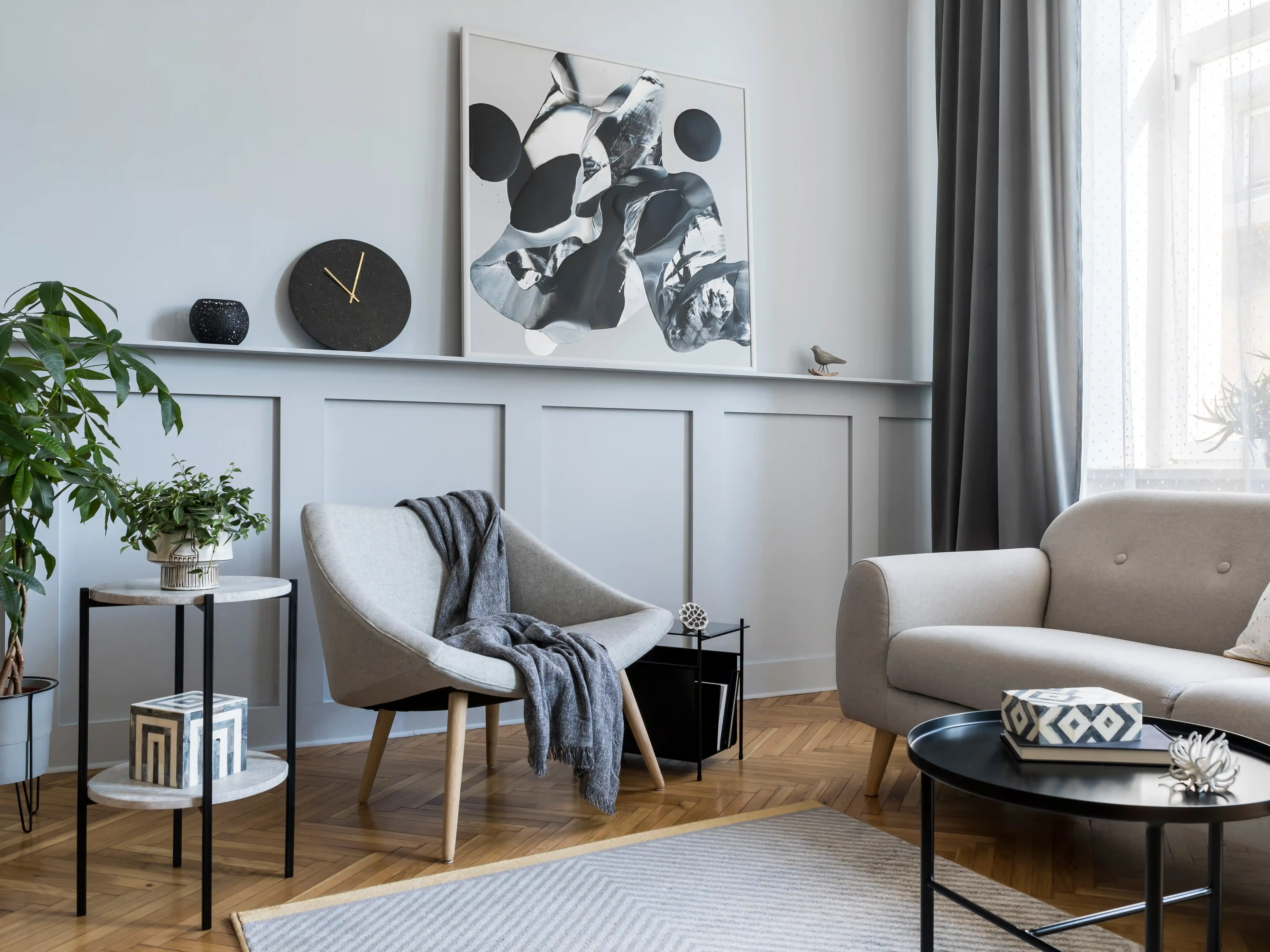

If you are looking for stair panelling ideas, there are plenty of options to suit your home. For staircase panelling ideas for modern homes, consider pairing crisp white panel frames with bold, dark walls.

Explore different stair panelling colour ideas to elevate your space. Deep navy or forest green can create a rich, welcoming entrance. And do not forget stairs panelling with handrail designs to give you practical support alongside your new look. If you want something totally different, glass stair panels can really brighten up a dark hallway.

FAQs

We always recommend removing wallpaper first. Preparing walls for stair panelling installation correctly means your wood glue can bond directly to the plaster or plasterboard, giving you a much more secure fix.

A very common mistake is forgetting to deduct the gap width from your total wall length before dividing your panels. Always check your maths. Another easy mistake is guessing the angles. Always use an angle finder for your diagonal cuts.

Yes, you can leave your skirting boards exactly where they are. You can easily build your panelling straight onto the wall above your existing skirting to save yourself time and effort.

Keep things simple. Just use a soft, damp cloth to wipe down your painted woodwork. Avoid using harsh chemical cleaners, as these can strip away your paint and damage the finish.

Plan your panel layout carefully before you begin. Try to adjust your panel widths slightly so your vertical or horizontal mouldings avoid the sockets entirely.
