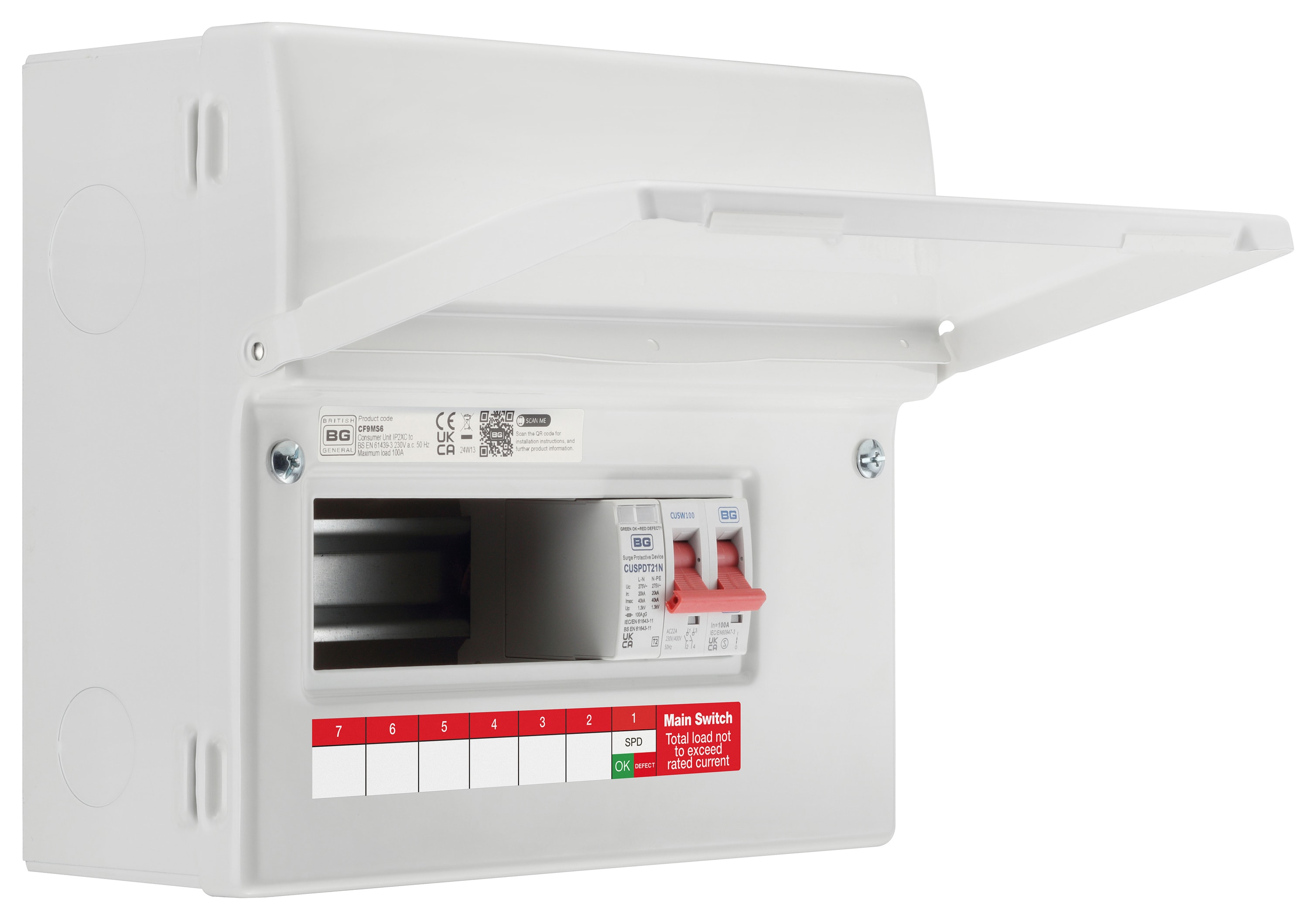

BG Main Switch 100A Unpopulated 9-Module 6 Way Consumer Unit with Type 2 SPD
Product code: 317394
Supplier delivery
This British General 6 Way Main Switch Consumer Unit with SPD offers double pole isolation, ready for MCB, RCBO and AFDD devices to protect all circuits. It comes complete with an integrated spirit level, 100A Main Switch, Type 2 SPD and all internal cables, terminals, busbar, labels and blanks. A modern stylish design and profile with flexible circuit combinations for a fast and easy installation using the keyhole fixing points, extensive choice of cable knockouts including 2 rows of large rear knockouts for optimised cable entry, and finished in a high gloss white paint finish.
Read more
Read less
Saved to Project List
BG Main Switch 100A Unpopulated 9-Module 6 Way Consumer Unit with Type 2 SPD
added to "My Project List".
You are not logged in to save your list permanently. Until you log in, your list will be saved temporarily and can only be accessed from the device you are using now.
Supplier delivery
Product details
- Current Rating: 100 A
- Depth: 116 mm
- Height: 231 mm
- Width: 262 mm
- Material: Steel
- Colour: White
- Type: Consumer Units
- Country Origin: China
- Brand Name: British General
Features & benefits
- Integrated spirit level
- 2 rows of large rear knockouts
- Type 2 SPD included
- Optional cable clamp included
- Large rear knockouts (2 rows)
- 40mm knockouts in sides, top and bottom faces for incoming cables
- Backed out and retained terminal screws
- 10 year guarantee
