How to Install a Dimmer Switch

Installing a dimmer switch can hugely elevate the lighting in your home, giving you more control over how much light you’d like to introduce into your rooms. This is a fairly basic electrical job that can be done by confident beginners without having to call an electrician. Let’s delve into what a dimmer switch is, and how to install one safely.

Useful links

To install a dimmer switch yourself, turn off the power, remove the old switch, connect the new dimmer following the existing wiring, and secure it. Make sure to call an electrician if you’re unsure about electrical work.
Dimmer switches offer flexible lighting control, allowing you to adjust brightness for comfort or task-based needs, and are available in one-way or two-way setups.
Most common bulb types are compatible with a dimmer switch, including halogen, incandescent, and many LEDs. But it’s important to check for “dimmable” labels before installation.

What is a dimmer switch?

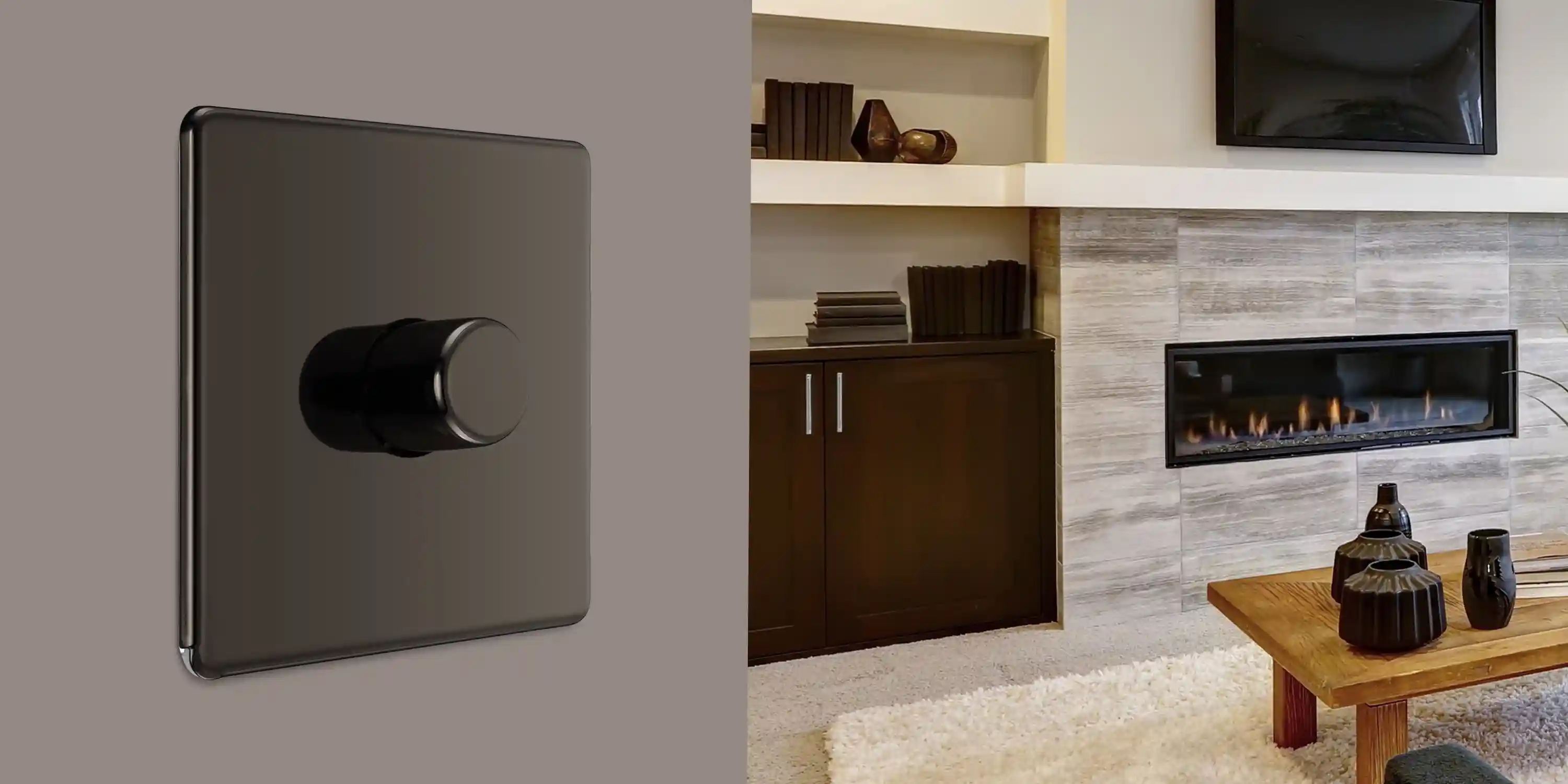

Dimmer switches are designed to give you control over the level of lighting in a specific room, allowing you to create ambience with low lighting or a bright space when turned right up.

For example, softer light in the morning can be kinder to your eyes after you’ve just woken up, while a brighter light can be great for hobbyists who often need to see what they’re doing clearly.

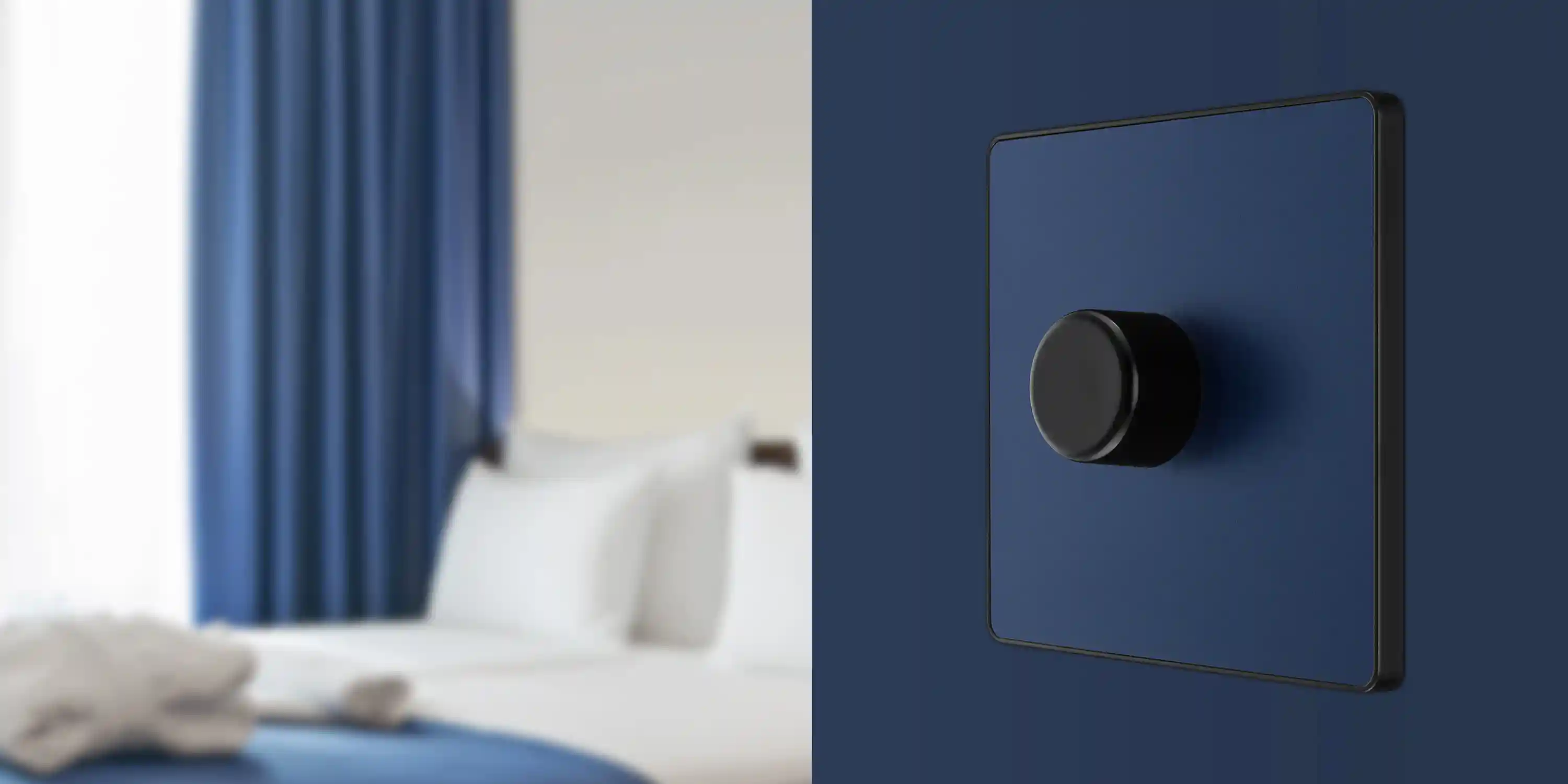

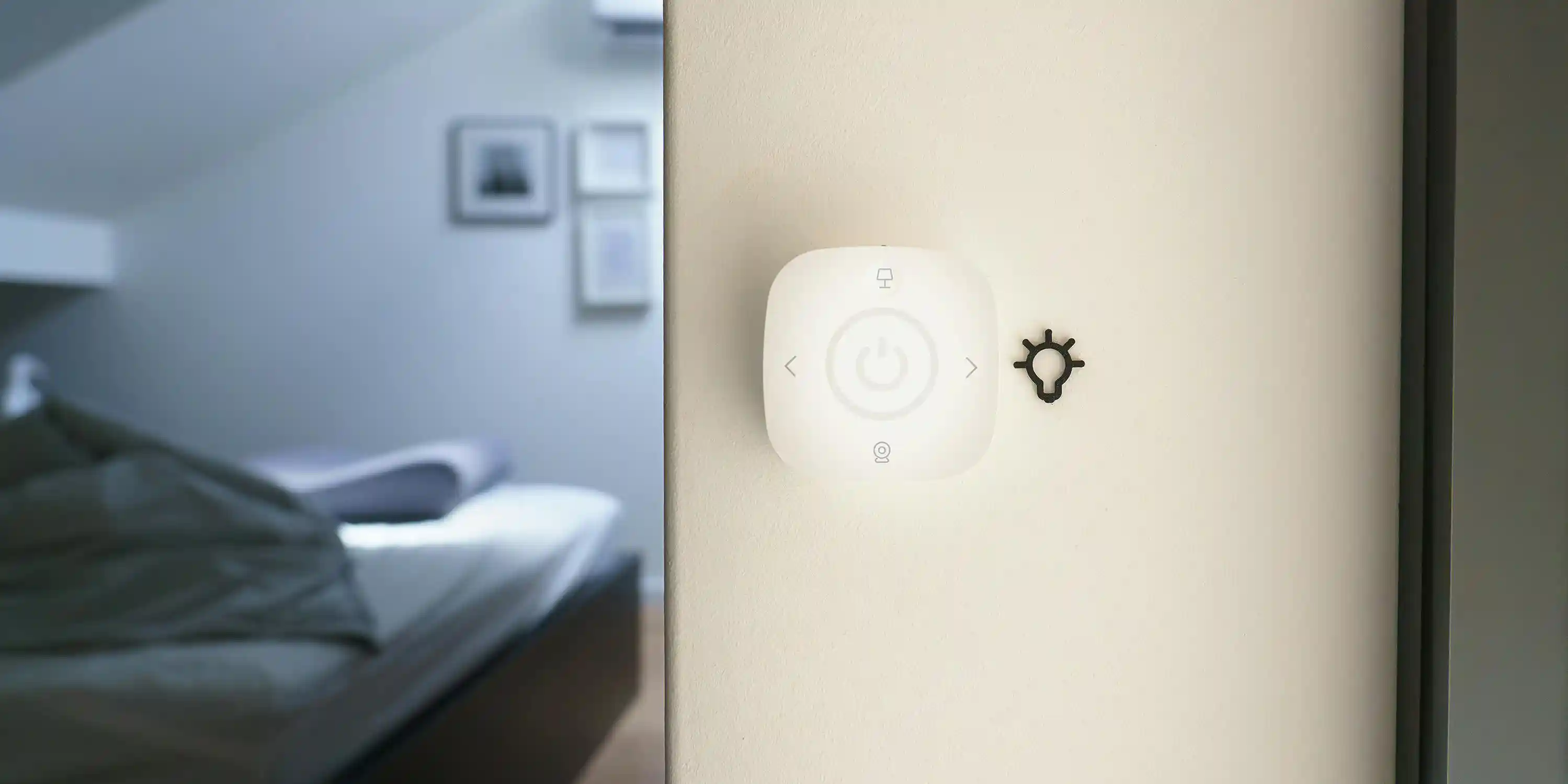

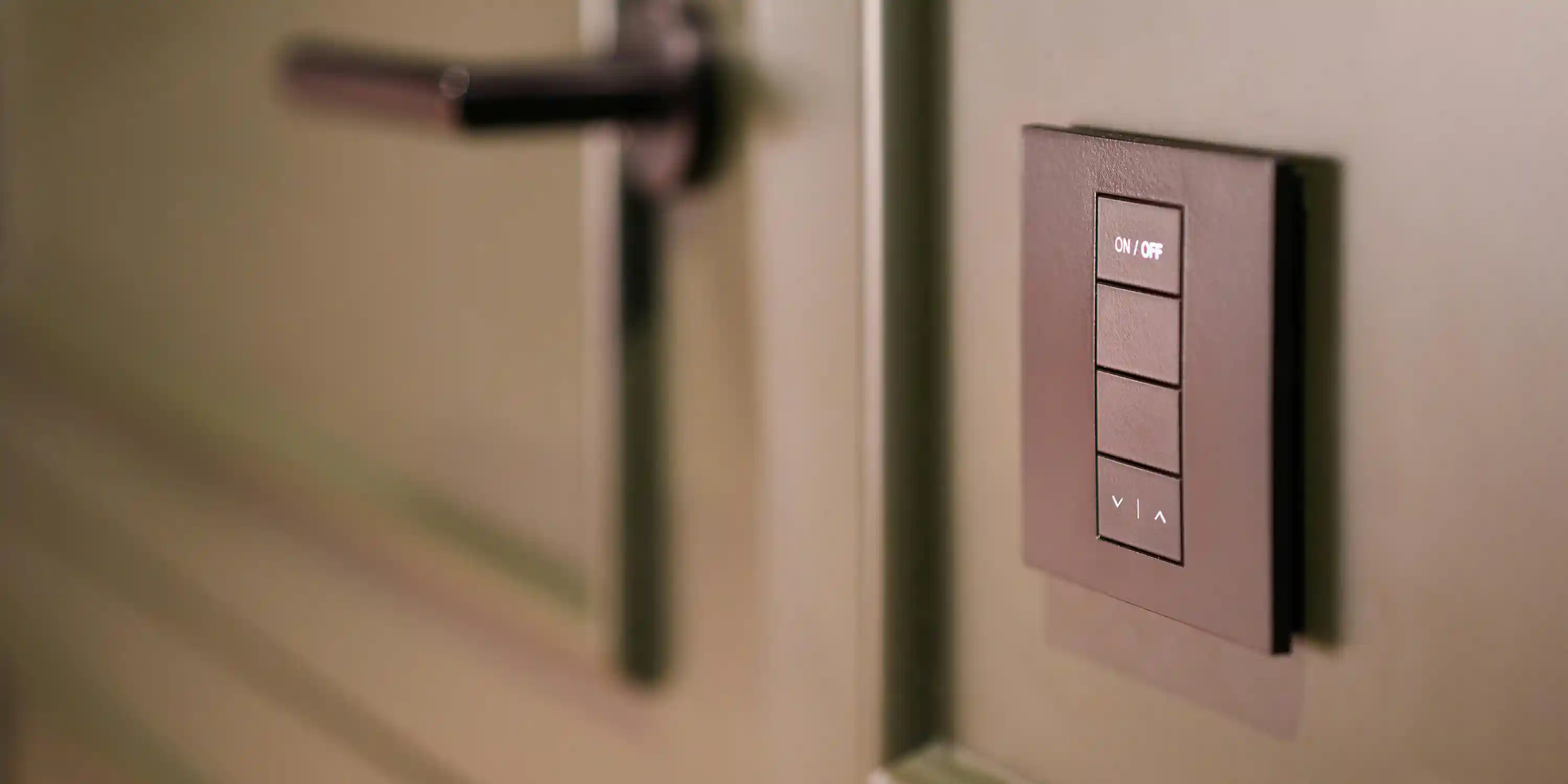

They can come in the form of dials, sliders, or touch pads, but they all do the same job.

Your standard dimmer switch will be a one-way switch, which means one switch controls one light fixture.

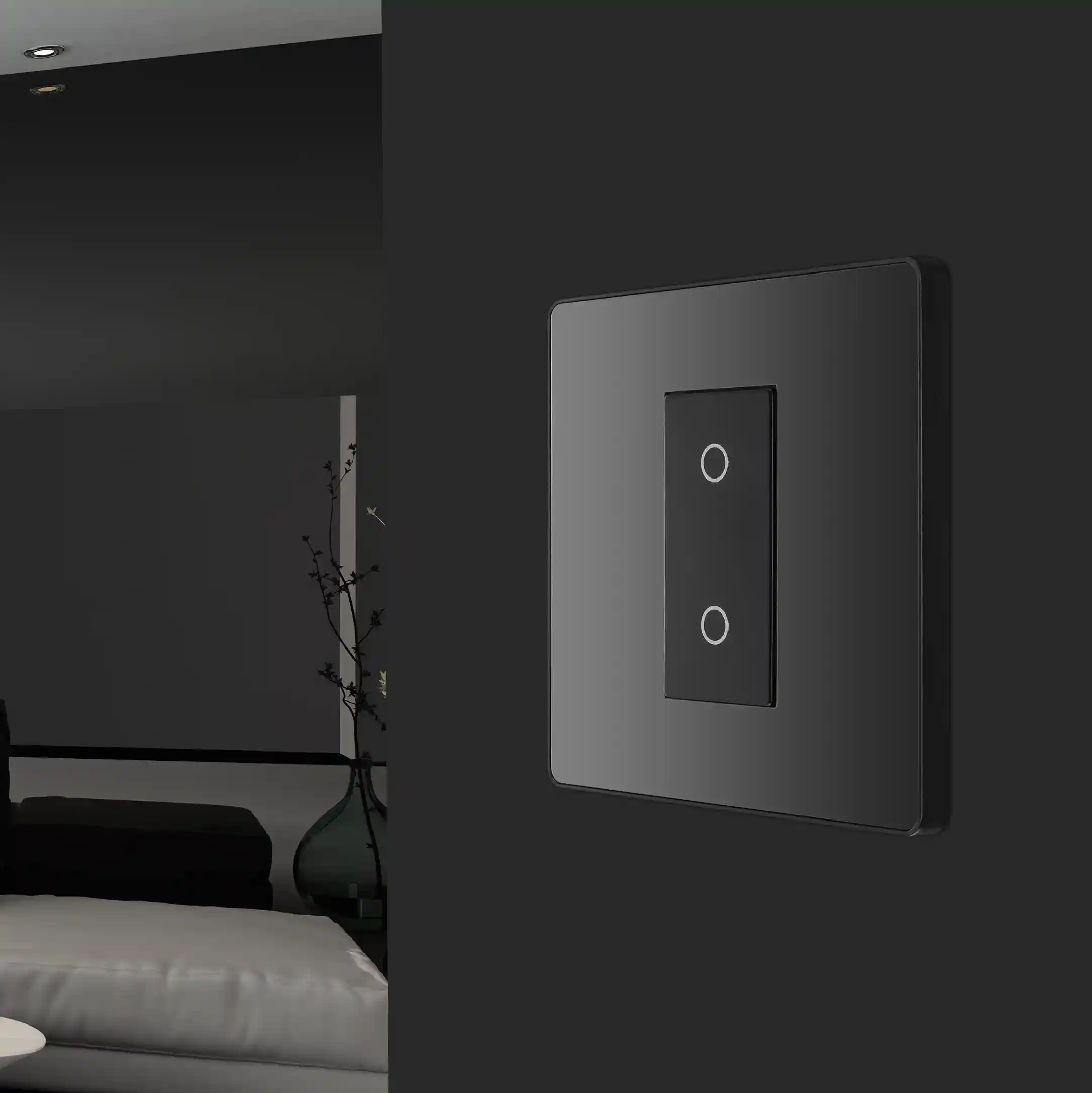

You can also get two-way dimmer switches which mean two switches control one light fixture. You’ll often find this at the top and bottom of your stairs or in large open plan spaces.

If you’re planning on creating a two-way setup with a dimmer switch as part of the circuit, make sure you buy a switch that is designed for this.

Safety precautions when installing a dimmer switch

You should always prioritise safety. You can do this by:

Wearing safety gloves where possible

Always switching off the power using the fuse box before you start your replacement
Always using a voltage tester to confirm no electrical currents are being sent to the fitting
Avoiding working on wiring that isn’t in good condition
Only attempting a replacement if you feel confident dealing with electricals
Never attempting electrical work in damp environments
Using a stable ladder or step stool, depending on the height
Keeping your workplace well-lit throughout

Can a dimmer switch be installed anywhere?

No, you can only install dimmer switches on compatible lighting circuits (single-pole or 3-way), have the correct wattage rating and the lightbulbs must also be dimmable.

Can a dimmer switch be installed on every light?

You can’t install a dimmer switch on every light as they’re not compatible with every light bulb, but they do work with the vast majority of modern bulbs.

The following bulbs are generally compatible with dimmer switches:

Halogen lights
Some LED light bulbs
Incandescent light bulbs
Compact Fluorescent lights

If in doubt, look for light bulbs that are labelled ‘dimmable’ on the box.

Installing your dimmer switch

Now you’ve picked out a new switch and made sure your lighting is compatible, below is a step-by-step guide to installing a dimmer switch for beginners.

Dimmer switch
Insulated screwdriver
Volt pen

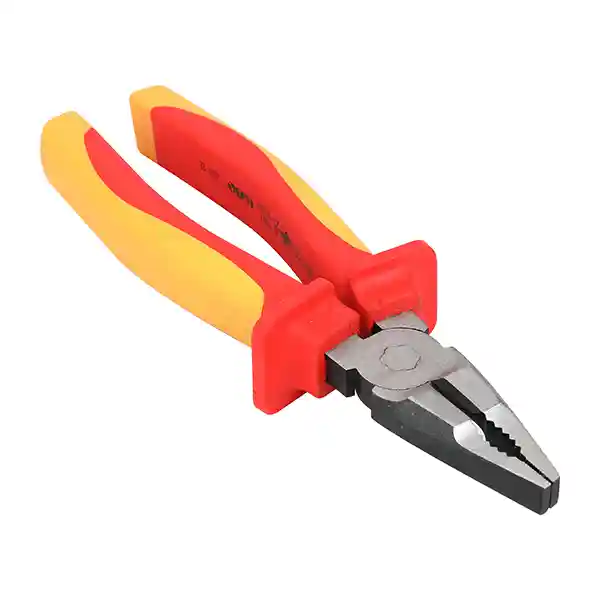

Pliers or wire strippers
Wire nuts

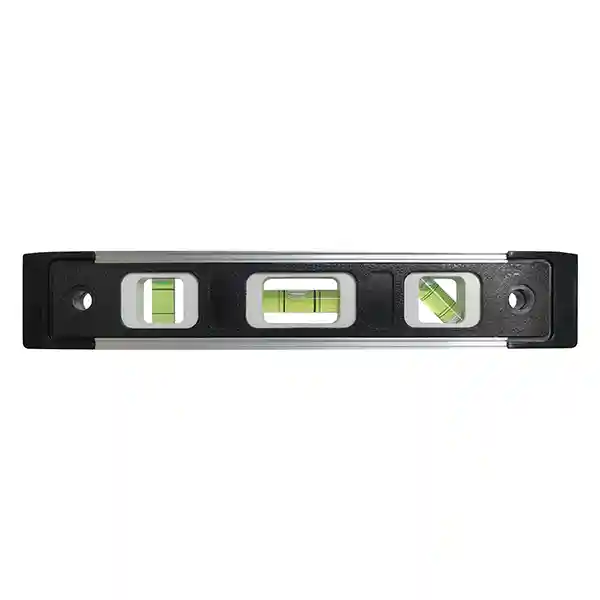

Spirit level

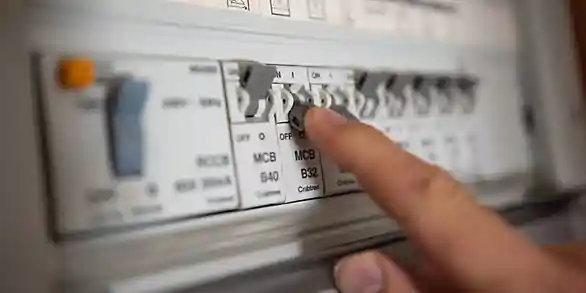

When it comes to electrical safety precautions before installing a dimmer switch, you’ll need to turn off the electrics connected to the dimmer switch. To do this, head to your circuit breaker and find the switch that controls the lights to the room you want to work on and turn it off.

Then check your light switch by turning it on and off to make sure the power has been isolated.

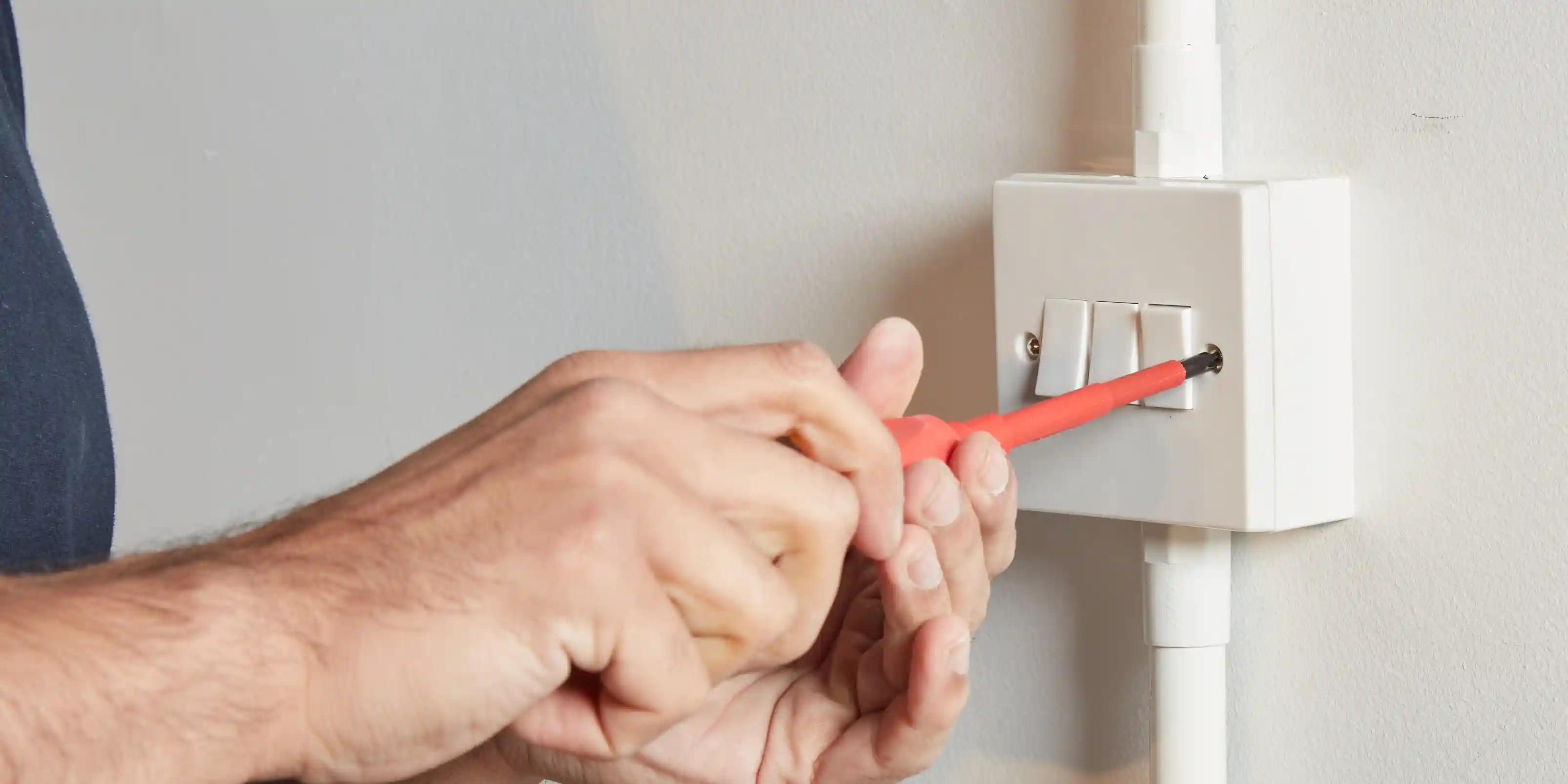

Use an insulated screwdriver to loosen the screws in your old light switch. You should now be able to lift it off the wall. Make sure the wires aren’t live by hovering over them with a volt pen and then disconnect them from the old switch.

When you remove the light switch, you’ll probably see three wires. It’s important to identify which wires are which:

Ground wire: Green, green and yellow, or bare (without a sheath)
Neutral wire: Blue, black (if wired pre-2006), or blue and green (if wired pre-1955)
Line wire: Brown or red (if wired pre-2006)

Before disconnecting them from the old switch, take a photo of the wiring. You’ll need to connect the wires up to your new switch in the same configuration, so it’s a good idea to have a photo for reference. For example, if two wires are connected to the same screw on your old switch, make sure they stay together on the new one.

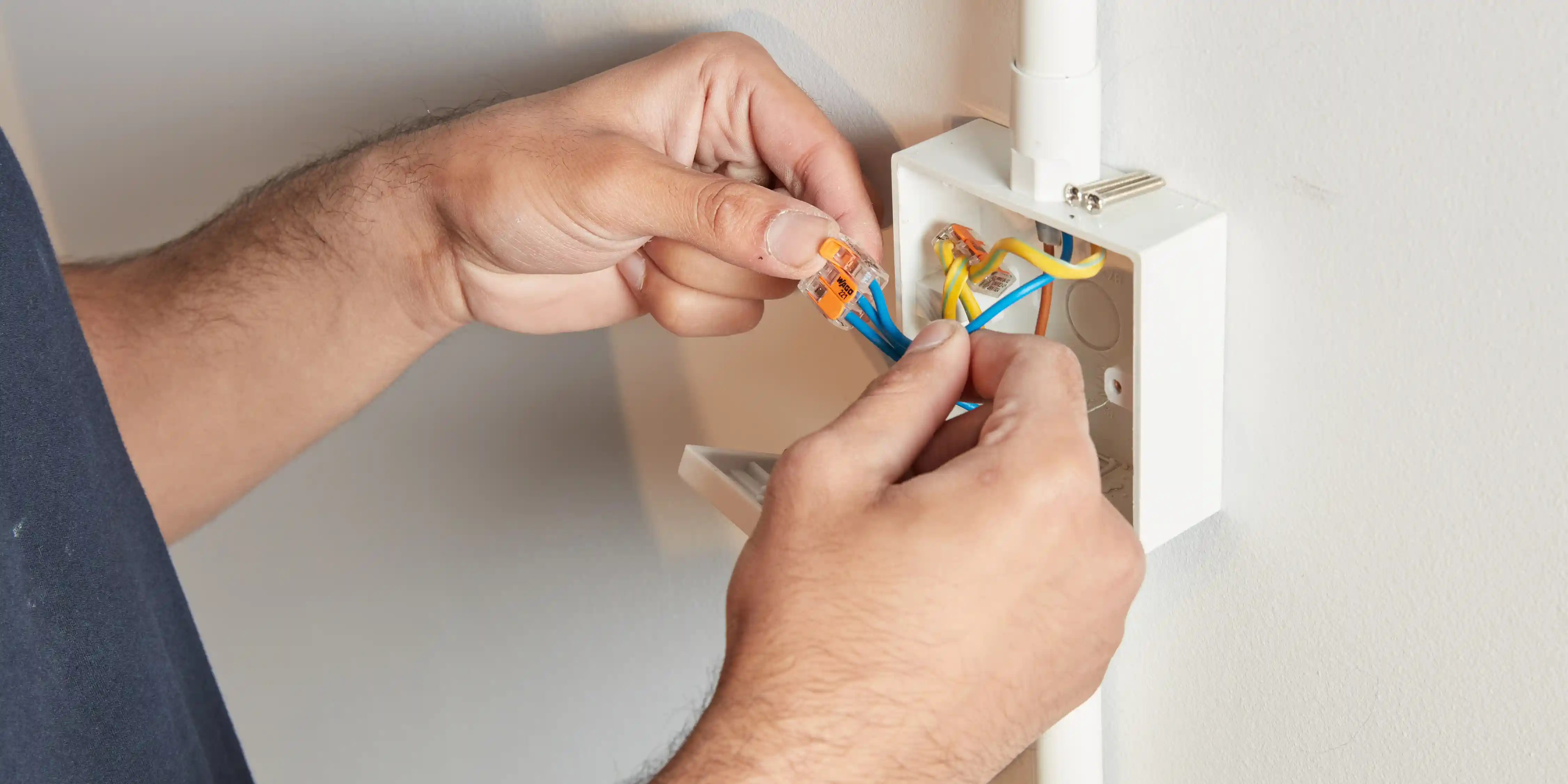

Following the photo of your previous wiring and the instructions that came with the new switch, and connect up the wires to the corresponding screws. You may need to strip the wires with pliers if they don’t properly fit into your switch. If there are any left over, cover them with a wire nut.

Tuck all the wiring back into the wall and switch your circuit breaker back on. You can now test that the light switch works. Once successfully tested, secure your new dimmer switch to the wall, tightening any screws with a screwdriver. Use a spirit level to make sure the plate is secured straight.

Note: if at any point you don’t feel confident working with wires, it’s a good idea to call in a professional electrician.

Installing a dimmer switch is a straightforward electrical job. All it takes is a little bit of wiring, and as a result, the difference a dimmer switch can make to your home is huge; with a slightly lower light in the night and the morning creating a relaxed and serene space.

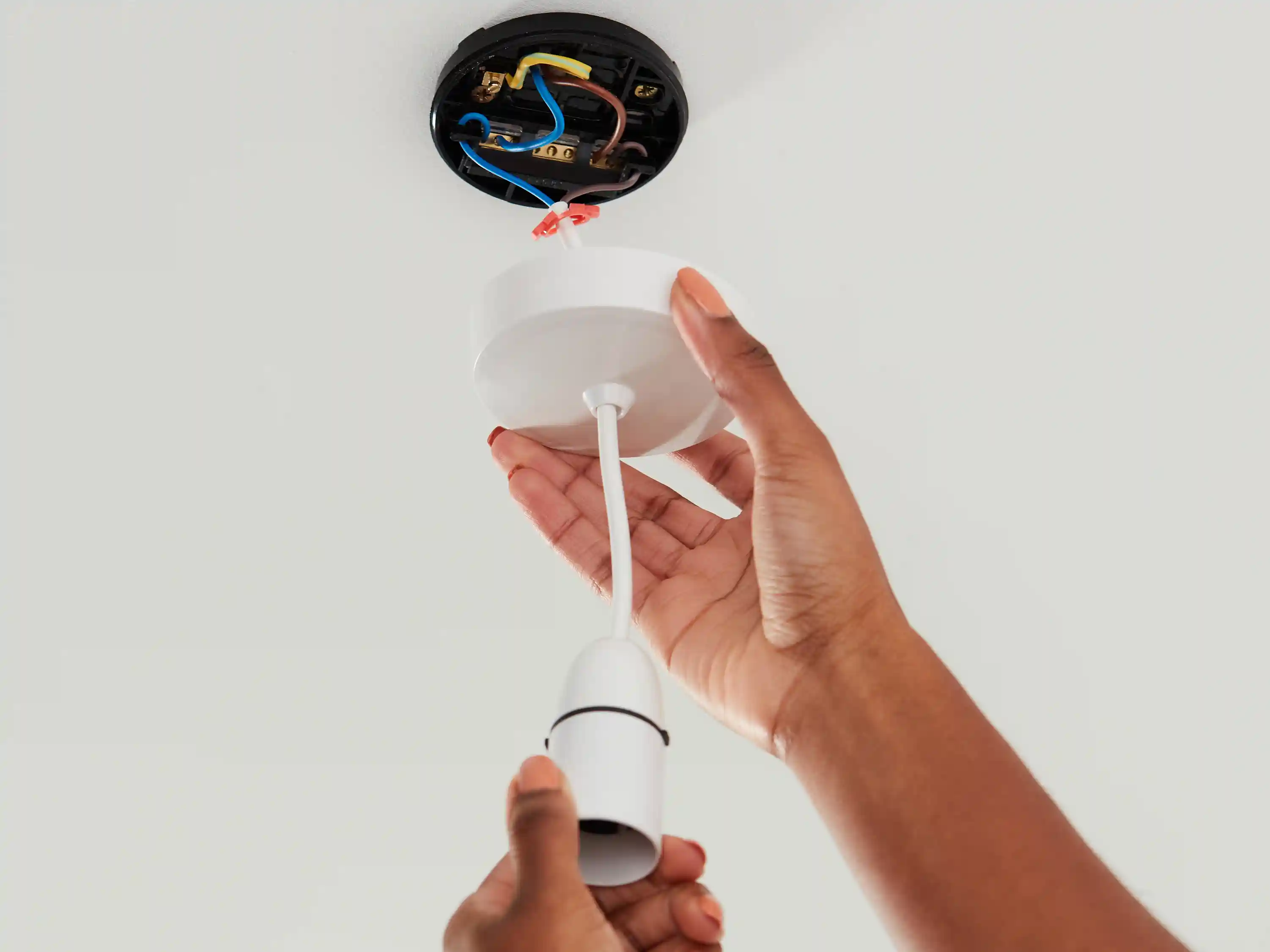

If you’re looking at updating your lighting too, check out our guide on how to change a light fitting.

FAQs

If you install a dimmer switch for lights that aren’t dimmable, you’ll still be able to change the brightness of the lighting, but the changes won’t be smooth, and it could jump in brightness, and may even flicker. Non-compatible lighting can also be overwhelmed by a dimmer switch, creating a possible fire hazard.

Yes, a two-way dimmer can be used for a circuit only needing one switch. Because of this, most manufacturers now only offer two-way switches as they’re more versatile. If your new dimmer switch has wires coming from it that need to be connected to your electrics, make sure to cap off any you’re not using.

As long as you isolate the power to the switch and safely test it when the installation is over, then this will be a safe and perfectly doable job for a novice DIYer. If you do have any doubt about working with electrics, it can also be a good idea to call in a professional.

No, not all LED are compatible with dimmer switches. To ensure you purchase one that is, always check the product details or packaging. In terms of CFL bulbs, most of them aren’t suitable for dimmable switches. If they are, they’ll be labelled ‘dimmable CFL bulb’.

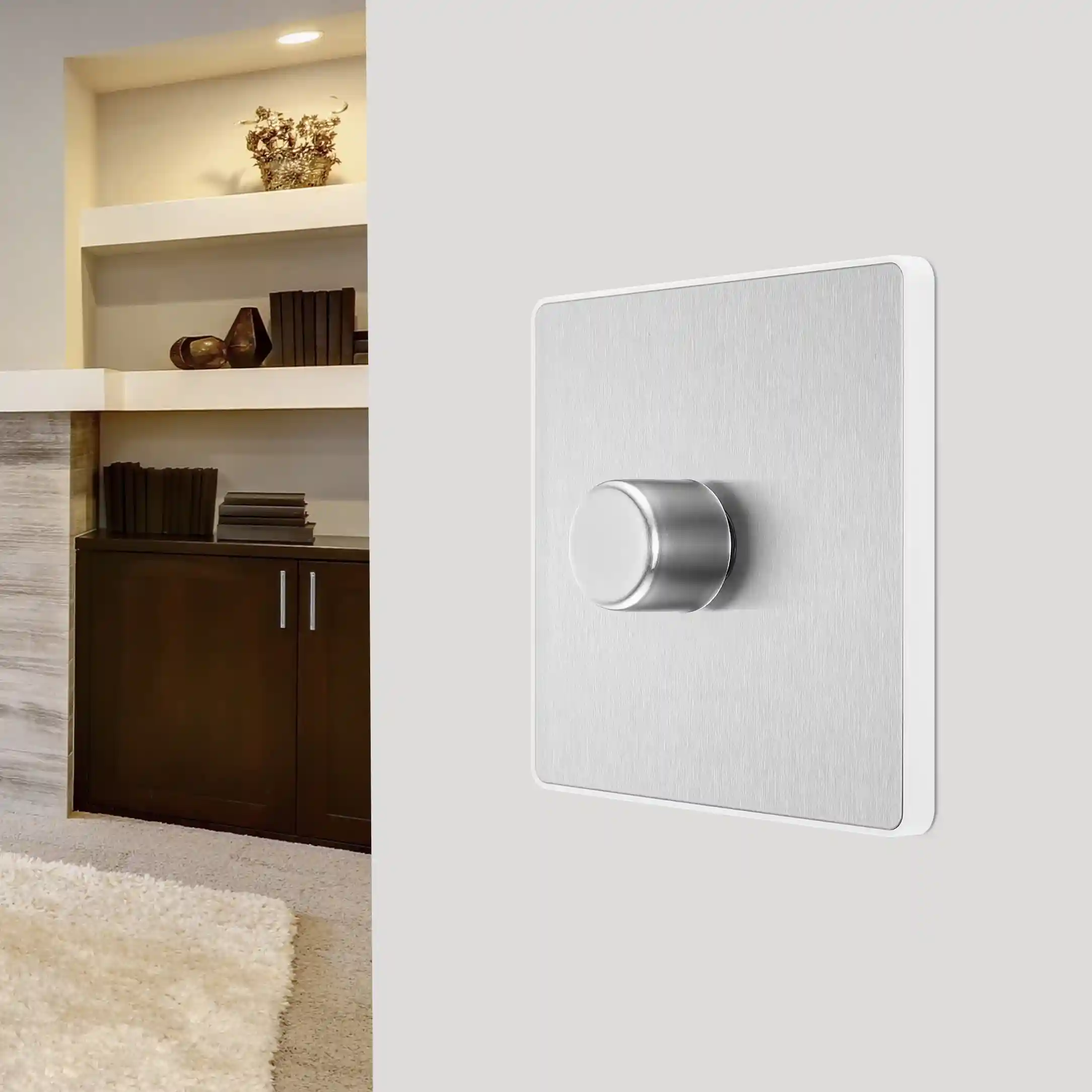

When looking for a dimmer switch for recessed lighting, especially if you’re dealing with LED downlights, you’ll need a dimmer switch specifically designed to work with LEDs, not just a standard incandescent dimmer. Opting for an LED-compatible dimmer means smoother, quieter dimming.

It’s likely due to your dimmer switch not being compatible with your bulb. Traditional dimmers (for incandescent bulbs) use phase-cut switching, which turn the power on and off rapidly, but this isn’t suitable for certain LED or CFL bulbs.

Sometimes it’s possible to install a dimmer switch without a neutral wire, but this depends on the type of dimmer you’re using. If it’s traditional or a ‘no-neutral’ dimmer, there shouldn’t be an issue. However, if it’s a smart dimmer or an electronic dimmer that requires constant power, a neutral wire is essential.

Yes, it’s usually an easy, straightforward swap if your bulbs are dimmable and the dimmer is rated for your lights. On the other hand, it may become complicated if it’s a 3-way switch, you’re opting for a smart dimmer, or your electrical box is too small.
